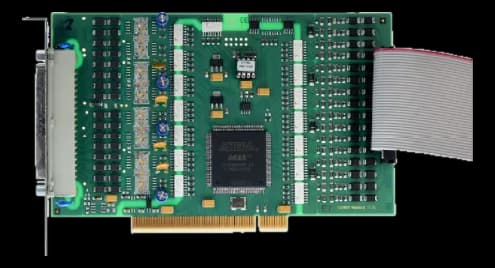

APCI-1564_3,3V3.3 V PCI slot variant with 24 V inputs and outputs
- Manufacturer
What sets this variant apart is the bus signaling voltage: it fits 3.3 V PCI slots while keeping the digital channel count of the base board. Optical isolation towards the field side is rated 1000 V.
The outputs are high-side to DIN EN IEC 61131-2, fed by an external source from 10 to 36 V, and deliver up to 500 mA per channel. Thermal protection acts at 170 °C on the output driver.
At a glance
- Channels: 64 channel
- Acquisition specifications: High-side outputs (load to ground, IEC 61131-2)
- Isolation voltage: 1000 V (via opto-couplers)
- Board function: Analog and digital I/O
- Architecture standard: PCI
Technical specifications
| Digital I/O | 32× isolated DI (24 V, 16 interruptible) + 32× isolated DO (high-side, 10–36 V, 500 mA/channel) |
|---|---|
| Connectors | D-Sub |
| Channels | 64 channel |
|---|---|
| Acquisition specifications | High-side outputs (load to ground, IEC 61131-2)Current per output: 500 mA max(range) |
| Isolation | Yes |
| Isolation voltage | 1000 V (via opto-couplers) |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI |
| Bus interface | PCI 32-bit (3.3 V signal voltage) |
| Supply voltage | 10–36 V |
|---|
| Dimensions | 171 × 99 |
|---|
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -25–70 °C |
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
