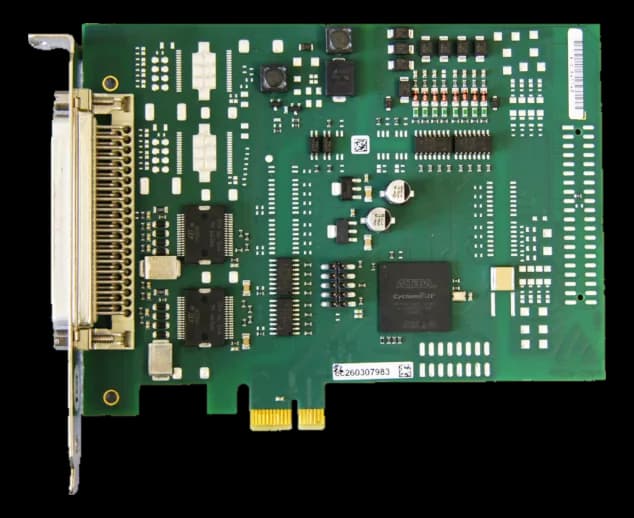

APCIe-1500PCI Express board with 16 digital inputs and 16 outputs
- Manufacturer
Fourteen inputs can raise interrupts towards the system, while two 16-bit counters and a watchdog complete the onboard logic: fast events are counted without engaging the computer processor.
Diagnostics report the external voltage falling below the expected threshold and return the outputs to the rest state. Optical isolation towards the field side is rated 1000 V and EMC is verified to DIN EN IEC 61326-1.
At a glance
- Watchdog: Yes
- Channels: 32 channel
- Acquisition specifications: High-side outputs (load to ground, DIN EN IEC 61131-2)
- Board function: Analog and digital I/O
- Architecture standard: PCI Express
Technical specifications
| Watchdog | Yes |
|---|
| Digital I/O | 16× isolated DI (24 V, 14 interrupt-capable) + 16× isolated DO (high-side, 11–36 V, 500 mA/channel) |
|---|---|
| Connectors | D-Sub(male · front) |
| Channels | 32 channel |
|---|---|
| Counter | 3 16-bit counters (2 timers + 1 watchdog); cycles 17.9 µs–74.95 s |
| Acquisition specifications | High-side outputs (load to ground, DIN EN IEC 61131-2)Current per output: 500 mA typical (1.5 A limit for 8 channels via PTC)(range)24 V nominal inputs (0–30 V): current 2 mA; UH 19–30 V, UL max 14 V(misc) |
| Isolation | Yes |
| Isolation voltage | 1000 V (optoisolatori)(ch sys) |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI Express |
| Bus interface | PCI Express 1.0a (slot x1/x4/x8/x16) |
| Supply voltage | 11–36 V |
|---|
| Dimensions | 149 × 99 mm |
|---|---|
| Weight | 0.105 kg |
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -25–70 °C |
| Operating systems | LinuxWindows |
|---|---|
| Driver & SDK | www.addi-data.com/drivers |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
