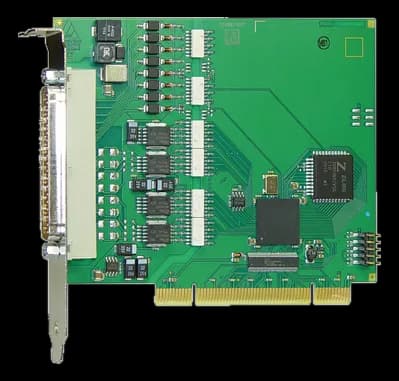

APCI-1016PCI board with 16 opto-isolated 24 V digital inputs
- Manufacturer
The board fits a PCI slot and reads field contacts while keeping the computer potential separate from the plant: opto-coupler isolation is rated 1000 V.
Signal delay is 70 µs and maximum input frequency is 5 kHz at nominal voltage, figures suited to reading limit switches, pressure switches and enable contacts. Electromagnetic compatibility is verified to the EN 61326 series.
At a glance
- Channels: 16 channel
- Board function: Analog and digital I/O
- Architecture standard: PCI
- Supply voltage: 5 V DC
- Operating temperature: 0–60 °C
Technical specifications
| Digital I/O | 16× isolated DI (24 V) |
|---|---|
| Connectors | D-Sub(male · front) |
| Channels | 16 channel |
|---|---|
| Acquisition specifications | 24 V nominal inputs: UH 19–30 V, UL max 14 V; current 6 mA @ 24 V(range) |
| Isolation | Yes |
| Isolation voltage | 1000 V (optoisolatori, PC→periferia)(ch sys) |
| I/O protection | Reverse polarity |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI |
| Bus interface | PCI 32 bit, 3,3/5 V (spec. 2.1 PCISIG) |
| Supply voltage | 5 V DC |
|---|---|
| Power consumption | 0.95 W(+5 V) |
| Dimensions | 131 × 99 mm |
|---|---|
| Weight | 0.16 kg |
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -25–70 °C |
| Certifications | IEC 61010-1 |
|---|
| Operating systems | LinuxWindows |
|---|---|
| Driver & SDK | www.addi-data.com/drivers |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
