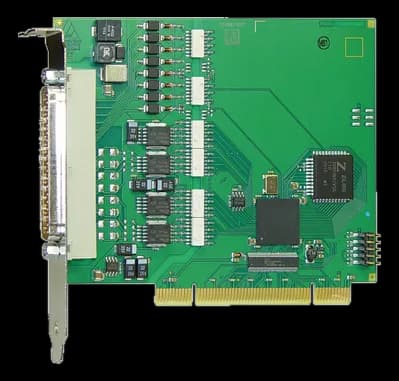

APCI-1500-12VPCI digital input board in the 12 V variant
- Manufacturer
What changes against the standard version is the level of the field signals: the inputs are ground-referenced and the high-state threshold starts at 9 V, with a maximum of 16 V.
The reading stays defined even when the sensor supply voltage is not steady, because both the minimum and the maximum levels of each logic state are specified.
At a glance
- Channels: 32 channel
- Board function: Analog and digital I/O
- Architecture standard: PCI
- Operating temperature: 0–60 °C
Technical specifications
| Digital I/O | 16× DI isolati (12 V nominali, 14 interrompibili) + 16× DO isolati (high-side, 10–36 V, 500 mA/canale) |
|---|---|
| Connectors | D-Sub |
| Channels | 32 channel |
|---|---|
| Acquisition specifications | Filtri su ingressi e uscite(misc)4,2 mA(range) |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI |
| Dimensions | 131 × 99 |
|---|
| Operating temperature | 0–60 °C |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
