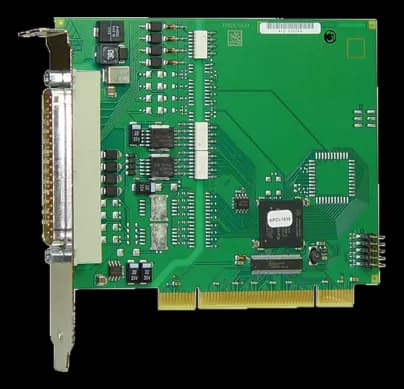

APCI-1516PCI board with 8 opto-isolated digital inputs and 8 outputs
- Manufacturer
Inputs and outputs share the same front connector and stay separate from the bus with 1000 V of optical isolation. The outputs are high-side to IEC 1131-2 and accept an external supply from 10 to 36 V.
Each output delivers up to 500 mA and carries over-temperature protection, shutting down at 170 °C. The watchdog is programmable in steps of 20 ms and returns the outputs to rest if the application program stops.
At a glance
- Watchdog: Yes
- Channels: 16 channel
- Acquisition specifications: High-side outputs (load to ground, IEC 1131-2)
- Board function: Analog and digital I/O
- Architecture standard: PCI
Technical specifications
| Watchdog | Yes |
|---|
| Digital I/O | 8× isolated DI (24 V) + 8× isolated DO (high-side, 10–36 V, 500 mA/channel) |
|---|---|
| Connectors | D-Sub(male · front) |
| Channels | 16 channel |
|---|---|
| Acquisition specifications | High-side outputs (load to ground, IEC 1131-2)24 V nominal inputs: UH 19–30 V, UL max 14 V; current 6 mA @ 24 V(range)RDS ON 0.4 Ω max; short circuit/output 1.5 A (shutdown at 24 V, Rload<0.1 Ω); turn-on 100 µs, turn-off 60 µs(misc) |
| Isolation | Yes |
| Isolation voltage | 1000 V (optoisolatori, PC→periferia)(ch sys) |
| Board function | Analog and digital I/O |
|---|---|
| Architecture standard | PCI |
| Bus interface | PCI 32 bit, 3,3/5 V (spec. 2.1 PCISIG) |
| Supply voltage | 10–36 V DC |
|---|---|
| Power consumption | 1.05 W(+5 V) |
| Dimensions | 131 × 99 mm |
|---|---|
| Weight | 0.16 kg |
| Operating temperature | 0–60 °C |
|---|---|
| Storage temperature | -25–70 °C |
| Certifications | IEC 61010-1 |
|---|
| Operating systems | LinuxWindows |
|---|---|
| Driver & SDK | www.addi-data.com/drivers |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
