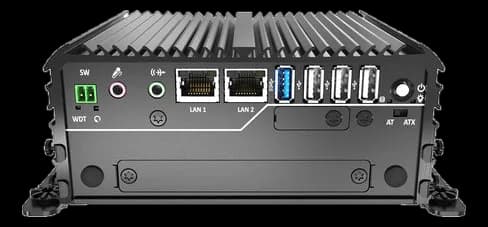

RCO-1020C-J1900Wall mount embedded computer with two display outputs and wide temperature range
- Manufacturer
RCO-1020C-J1900 is a Premio embedded computer for process control and line stations: a 0.97 kg extruded aluminum chassis, wall or VESA mounting (DIN rail optional) and an operating range from -25 to 70 °C.
The quad-core Intel Celeron J1900 SoC at 2 GHz is paired with DDR3L up to 8 GB, two GbE, four USB, two RS-232/422/485 serial ports, isolated digital I/O, DVI-I and DisplayPort outputs and two full-size Mini PCIe; DC power input with OVP, OCP and reverse polarity protection.
At a glance
- CPU generation: Bay Trail
- Processor: Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz
- Memory: 1× SODIMM DDR3L 1066/1333 MHz (204 pin), max 8 GB
- RAM type: DDR3L
- Maximum RAM: 8 GB
Technical specifications
| CPU generation | Bay Trail |
|---|---|
| Processor | Intel® Celeron® Processor J1900, Quad Core, 2MB Cache, 2.0 GHz |
| Chipset | SoC |
| Memory | 1× SODIMM DDR3L 1066/1333 MHz (204 pin), max 8 GB |
|---|---|
| RAM type | DDR3L |
| Maximum RAM | 8 GB |
| Storage | 1× bay 2.5" SATA HDD, interno1× mSATA (condiviso con 1× Mini PCIe) |
|---|
| Number of displays | 2 |
|---|---|
| Video outputs | 1× DVI-I1× DP(DisplayPort)Yes (by optional split cable)(VGA) |
| Ethernet ports | GbE1: Intel I210-AT (Wake-on-LAN, PXE)2× GbE (RJ45) |
|---|---|
| USB ports | 3× USB 2.01× USB 3.0 |
| Serial interfaces | 2× RS-232/422/485 (modulo) |
| Audio | 1× Line-out1× Mic-inRealtek ALC888S |
| Digital I/O | 4× DI + 4× DO, isolati(in)4× DI + 4× DO, isolati(out) |
| Other I/O | 4x WiFi Antenna Holes · 1x Power Switch · 1x AT/ATX Switch · 1x Remote Power On/Off |
| Expansion | 2× Mini PCIe full-size1× Universal I/O Bracket (per Mini PCIe) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–48 V |
| Mounting | VESA MountWall MountDIN Rail Mount(optional) |
|---|---|
| Weight | 0.97 kg |
| Chassis material | alluminio, metallo(extruded) |
| Operating temperature | -25–70 °C |
|---|---|
| Storage temperature | -30–85 °C |
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
