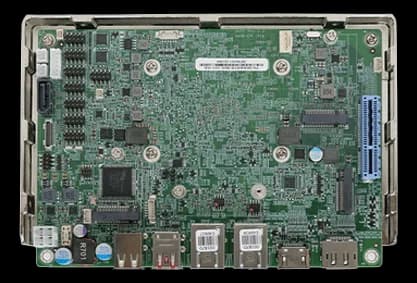

NANO-EHLEPIC SBC with on-board Intel Celeron J6412 quad-core SoC
- Manufacturer
NANO-EHL is a 115 mm x 165 mm EPIC board built around the Intel Celeron J6412 SoC (Elkhart Lake platform, 10 nm) soldered on-board: a base for industrial motherboards and embedded systems where footprint and power consumption matter, with a 10 W TDP.
Two elements set it apart in its class: the iDPM 3040 slot, an interface designed by IEI for connecting eDP, LVDS or VGA display modules, and the PCIe x4 slot with Gen3 x2 signal on the board edge, usable with an IEI riser card that provides two PCIe x1 slots.
Available configuration: NANO-EHL-J6412C-R10.
At a glance
- On-board dual channel LPDDR4x up to 16GB
- M.2 B key and M.2 A key expansion
- Integrated Intel UHD graphics (Gen11)
- CE and FCC compliant
Technical specifications
| Processor | EPIC SBC supports Intel® quad-core Celeron® J6412Intel® Atom™ x6000 series / Pentium® / Celeron® (Elkhart Lake platform)Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W) |
|---|---|
| Graphics | Intel® UHD Graphics (Gen11) |
| Memory | LPDDR4x-3200Gbps 8GB, up to 16GB |
|---|
| SATA ports | 1 x SATA 6Gb/s with 5V SATA power connector |
|---|
| Video outputs | 1 x HDMI™ : up to 4096 x 2160 @30Hz1 x iDPM : support iEi eDP/ LVDS/ VGA module |
|---|
| Digital I/O | 1× 12-bit digital I/O (2x7 pin) |
|---|---|
| Other I/O | 1× Smart fan connector (1x4 pin) |
| Audio | 1× iAUDIO(2× 5 pin, support IEI AC-KIT-888HD Module) |
| Ethernet ports | LAN1: Intel® I226-V 2.5GbE controllerLAN2: Intel® I226-V 2.5GbE controller |
| Serial interfaces | 2 x Internal RS-232/422/485 : 2x5 pin, P=2.04 x Internal RS-232 : 2x5 pin, P=2.0 |
| USB ports | 2 x External USB 2.0 : Type A2 x External USB 3.2 Gen2x1 : 10Gb/s(Type A)2 x Internal USB 2.0 : 2x4 pin, P=2.0 |
| Supply voltage | 1× Internal power connector (2x2 pin) |
|---|
| Dimensions | 115mm x 165mm |
|---|---|
| Weight | 0.35–0.85 kg |
| Operating temperature | -10–60 °C |
|---|
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
