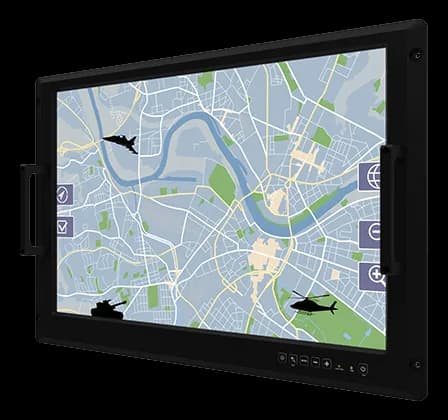

W24L100-RKS1ML24-inch fanless rugged monitor with D-Sub and BNC video inputs
- Manufacturer
This Winmate rugged monitor is intended for industrial stations, control rooms and on-board vehicle installations, with an aluminum and metal frame and mounting on a VESA bracket.
It works with relative humidity from 10 to 95% and withstands storage temperatures from -10 to 60 °C, conditions typical of the unconditioned environments of plants and warehouses.
At a glance
- Display size: 24 ″
- Resolution: 1920x1200 WUXGA
- Brightness: Up to 399 standard cd/m²
- Video inputs: VGA
- Contrast ratio: 1000:1
Technical specifications
| Display size | 24 ″ |
|---|---|
| Resolution | 1920x1200 WUXGA |
| Aspect ratio | 4:3 |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Video inputs | VGADVI |
| Contrast ratio | 1000:1 |
| Viewing angle | 89° / 89° / 89° / 89° (L/R/U/D) |
| Display colors | 16.7M colori |
| Active area | 518.4 × 324.0 mm |
| Surface treatment | Anti-reflective (AR)(default) |
| OSD controls | 7 key: Power, Decrease, Increase, Exit/ Auto, Menu, Day/ Night, Lock/ Unlock |
| Other I/O | Video 1 x 15 Pin D-Sub · 5× BNC |
|---|
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Mounting | VESA MountPanel Mount(optional) |
|---|---|
| Chassis material | alluminio, metallo |
| Operating temperature | 0–50 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -10–60 °C |
| Certifications | MIL-STD-810FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
