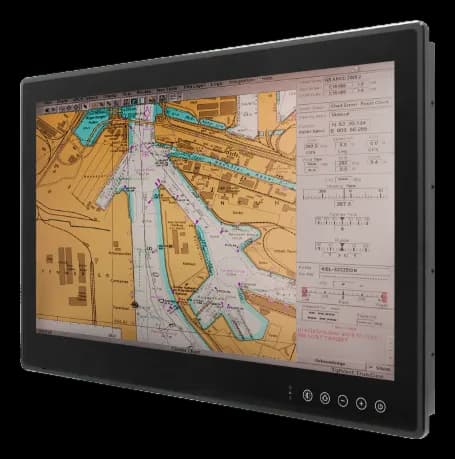

W24L100-MRA1FP24" monitor with IP66 front and anti-reflective treatment
- Manufacturer
W24L100-MRA1FP is intended for bridge consoles, command bridges and technical stations, onboard as in shore-based plants, where the front of the display works exposed to water, humidity and variable lighting.
The contrast ratio of 5000 sustains the readability of the image; the aluminium frame allows panel or VESA bracket mounting, cooling is fanless and the tolerated relative humidity extends from 5 to 95%.
At a glance
- Display size: 24 ″
- Resolution: 1920x1080 FHD
- Brightness: Up to 399 standard cd/m²
- Video inputs: DVI
- Contrast ratio: 5000:1
Technical specifications
| Display size | 24 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | PCAP(default) |
| Video inputs | DVIVGAHDMI(1.4) |
| Aspect ratio | 16:9 |
| Contrast ratio | 5000:1 |
| Viewing angle | 89,89,89,89 |
| Display colors | 16.7M Colors |
| Active area | 531.36 × 298.89 mm |
| Surface treatment | Anti-reflective (AR)Anti-glare (AG)(AG film (Optional) · optional) |
| USB ports | 1× USB Type A |
|---|---|
| Serial interfaces | 1× RS232 for remote control |
| Audio | 75 dB~80 dB, 2300 Hz, 1m(buzzer) |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 45 W |
| Mounting | Panel MountVESA Mount |
|---|---|
| Dimensions | 595 × 385 × 63.8 mm |
| Cutout dimensions | 570 × 360 mm |
| Weight | 10.3 kg |
| Chassis material | alluminio |
| IP rating | Front IP66 |
|---|---|
| Cooling | Fanless |
| Certified market sectors | Marine |
|---|---|
| Certifications | DNV / IEC 60945FCCCE |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
