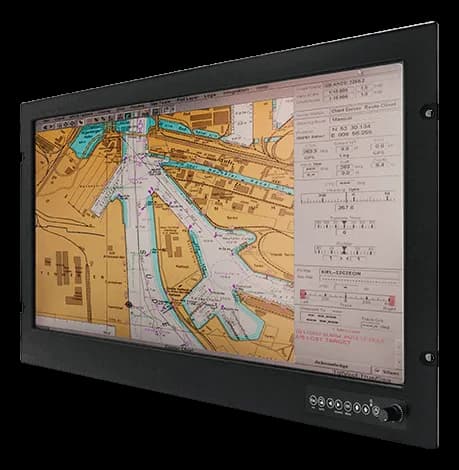

W24L100-MRA124" industrial monitor with IP66 front and 5000 contrast
- Manufacturer
W24L100-MRA1 is a monitor for bridge consoles, command bridges and onboard technical stations, where the electronics live with demanding environmental conditions and constrained spaces; the same construction also makes it suited to shore-based industrial plants.
The frame combines aluminium and metal and keeps the weight at 9.7 kg; the relative humidity tolerance, from 5 to 95%, completes the environmental profile for marine use.
At a glance
- Display size: 24 ″
- Resolution: 1920x1080 FHD
- Brightness: Up to 399 standard cd/m²
- Video inputs: S-Video
- Contrast ratio: 5000:1
Technical specifications
| Display size | 24 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(default) |
| Video inputs | S-VideoComposite BNCVGADVI |
| Aspect ratio | 16:9 |
| Contrast ratio | 5000:1 |
| Viewing angle | 89,89,89,89 |
| Display colors | 16.7M Colors |
| Active area | 531.36 × 298.89 mm |
| Surface treatment | Anti-reflective (AR)(optional) |
| OSD controls | Dimming knob control backlight brightness from nearly 0% to 100% |
| Serial interfaces | 1× RS232 for Remote Control1× RS232/USB for Touch Screen |
|---|
| AC/DC input | DC |
|---|---|
| Power consumption | 50 W |
| Mounting | Panel MountVESA Mount |
|---|---|
| Cutout dimensions | 566 × 362 mm |
| Weight | 9.7 kg |
| Chassis material | alluminio, metallo |
| IP rating | Front IP66 |
|---|---|
| Cooling | Fanless |
| Certified market sectors | Marine |
|---|---|
| Certifications | DNV / IEC 60945FCCCE |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
