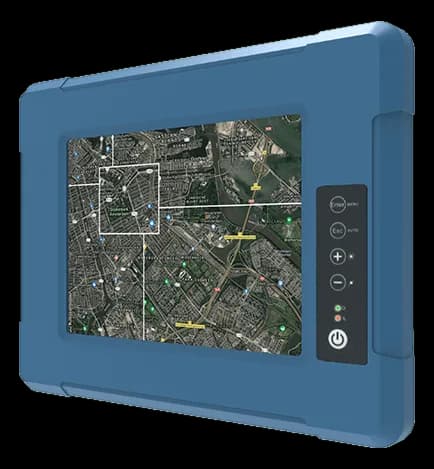

R08L100-MLU18.4" rugged monitor with IP65 rating over the whole enclosure
- Manufacturer
R08L100-MLU1 belongs to the compact-format Winmate rugged displays and is intended for machine-side supervision stations, in shops where dust, liquids and thermal swings rule out the use of commercial monitors.
The DC power input accepts nominal voltages of 9, 12 or 36 V, so the same model integrates into cabinets and vehicles with different on-board buses. The environmental profile also covers relative humidity tolerated from 10 to 95% and storage from -30 to 70 °C.
At a glance
- Display size: 8.4 ″
- Resolution: 800x600 SVGA
- Brightness: 600-999 outdoor cd/m²
- Contrast ratio: 600:1
- AC/DC input: DC
Technical specifications
| Display size | 8.4 ″ |
|---|---|
| Resolution | 800x600 SVGA |
| Aspect ratio | 4:3 |
| Brightness | 600-999 outdoor cd/m² |
| Touchscreen | Resistive(optional) |
| Video inputs | VGA(1 x VGA (Default), HDMI (Optional) · default) |
| Contrast ratio | 600:1 |
| Viewing angle | 75° / 75° / 60° / 70° (L/R/U/D) |
| Display colors | 262K colori |
| Active area | 170.4 × 127.8 mm |
| Surface treatment | Anti-reflective (AR)(default) |
| OSD controls | 5 Keys: - , + , Power , Esc , Enter |
| Serial interfaces | 1× RS232 for Touch Screen(optional) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12 VDC (default) · 9~36 VDC wide range (opzionale) |
| Mounting | VESA Mount |
|---|---|
| Chassis material | alluminio, metallo |
| IP rating | Full IP65 |
|---|---|
| Operating temperature | -20–60 °C |
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | CEMIL-STD-810FCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
