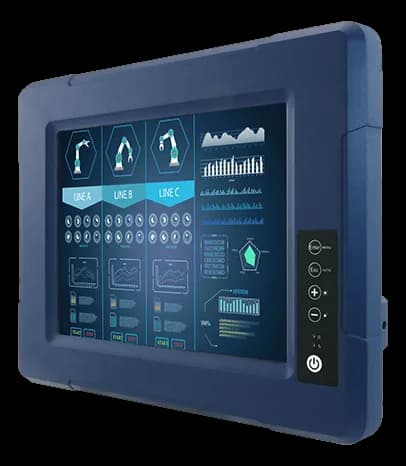

R08T200-VMU18.4" rugged monitor with IP65 front and VESA or yoke mounting
- Manufacturer
R08T200-VMU1 is a compact display in the Winmate rugged range for machine-side control of plants and lines, where the panel stays exposed to dust, splashes and frequent cleaning during the work shift.
A contrast ratio of 600:1 and a storage temperature from -30 to 70 °C complete a profile built for continuous use on the shop floor, including when the monitor is moved or left idle in unconditioned environments.
At a glance
- Display size: 8.4 ″
- Resolution: 800x600 SVGA
- Brightness: 600-999 outdoor cd/m²
- Touchscreen: Resistive
- Contrast ratio: 600:1
Technical specifications
| Display size | 8.4 ″ |
|---|---|
| Resolution | 800x600 SVGA |
| Aspect ratio | 4:3 |
| Brightness | 600-999 outdoor cd/m² |
| Touchscreen | Resistive |
| Video inputs | VGA(default)HDMI(optional) |
| Contrast ratio | 600:1 |
| Viewing angle | 75° / 75° / 60° / 70° (L/R/U/D) |
| Display colors | 262K colori |
| Active area | 170.4 × 127.8 mm |
| OSD controls | 1× Power Button, 1× Adjust up button, 1× Adjust down button, 1× ESC (Auto) button, 1× Menu button |
| USB ports | 1× USB type-A for touch screen control(optional) |
|---|---|
| Serial interfaces | 1× RS232 D-sub9 for touch screen control(optional) |
| AC/DC input | DC |
|---|---|
| Power input | 10–60 V |
| Mounting | Yoke MountVESA Mount |
|---|---|
| Weight | 2.2 kg |
| Chassis material | alluminio |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -10–55 °C |
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
