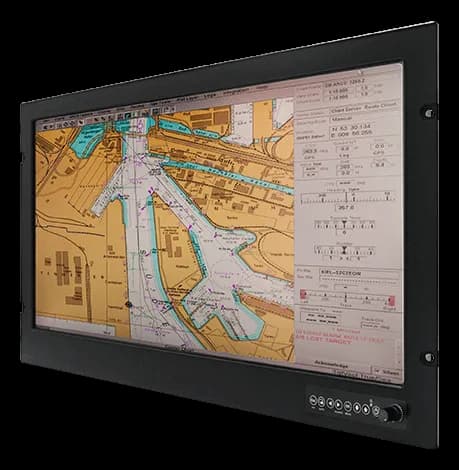

W24L100-MRA1HBHigh brightness monitor at 1000 cd/m² with IP66 front
- Manufacturer
W24L100-MRA1HB is designed for stations hit by strong ambient light, where the readability of the display has to be maintained without canopies or additional shielding: machine-side positions, plant supervision, areas with intense lighting.
The contrast ratio of 5000 contributes to image rendering in these conditions; the aluminium and metal frame is mounted on a panel or on a VESA bracket and the permitted relative humidity extends from 5 to 95%.
At a glance
- Display size: 24 ″
- Resolution: 1920x1080 FHD
- Brightness: 1000+ sunlight cd/m²
- Video inputs: DVI
- Contrast ratio: 5000:1
Technical specifications
| Display size | 24 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Brightness | 1000+ sunlight cd/m² |
| Touchscreen | Resistive(optional) |
| Video inputs | DVIVGAS-VideoComposite BNC |
| Aspect ratio | 16:9 |
| Contrast ratio | 5000:1 |
| Viewing angle | 89,89,89,89 |
| Display colors | 16.7M Colors |
| Active area | 531.36 × 298.89 mm |
| Serial interfaces | 1× RS232 for Remote Control1× RS232/USB for Touch Screen |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 55 W |
| Mounting | Panel MountVESA Mount |
|---|---|
| Cutout dimensions | 566 × 362 mm |
| Weight | 9.7 kg |
| Chassis material | alluminio, metallo |
| IP rating | Front IP66 |
|---|---|
| Cooling | Fanless |
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
