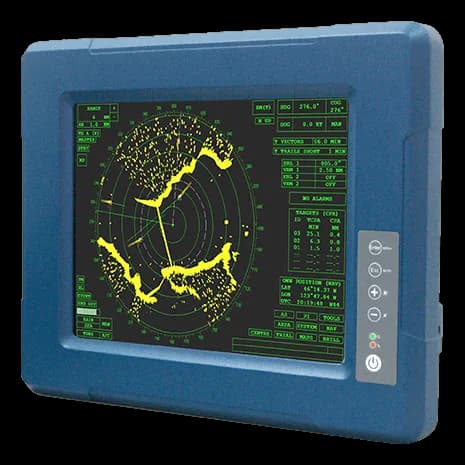

R10L100-MLP110.4" rugged monitor with IP65 rating extended to the entire enclosure
- Manufacturer
R10L100-MLP1 is part of the Winmate industrial monitors and is intended for machine-side use and control rooms in plants where temperature and humidity vary appreciably over the working day.
The DC input admits nominal voltages of 9, 12 or 36 V, simplifying integration into already wired cabinets. On the environmental side the display tolerates relative humidity from 10 to 95% and storage from -20 to 70 °C, conditions typical of warehouses and unconditioned shops.
At a glance
- Display size: 10.4 ″
- Resolution: 800x600 SVGA
- Brightness: 600-999 outdoor cd/m²
- Contrast ratio: 400:1
- AC/DC input: DC
Technical specifications
| Display size | 10.4 ″ |
|---|---|
| Resolution | 800x600 SVGA |
| Aspect ratio | 4:3 |
| Brightness | 600-999 outdoor cd/m² |
| Touchscreen | Resistive(optional) |
| Video inputs | VGA(1 x VGA (Default), HDMI (Optional) · default) |
| Contrast ratio | 400:1 |
| Viewing angle | 70° / 70° / 70° / 60° (L/R/U/D) |
| Display colors | 262K colori |
| Active area | 211.2 × 158.4 mm |
| Surface treatment | Anti-reflective (AR)(default) |
| OSD controls | 5 Keys: - , + , Power , Esc , Enter |
| Serial interfaces | 1× RS232 for Touch Screen(optional) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12 VDC (default) · 9~36 VDC wide range (opzionale) |
| Mounting | VESA Mount |
|---|---|
| Chassis material | alluminio, metallo |
| IP rating | Full IP65 |
|---|---|
| Operating temperature | -10–60 °C |
| Cooling | Fanless |
| Storage temperature | -20–70 °C |
| Certifications | MIL-STD-810FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
