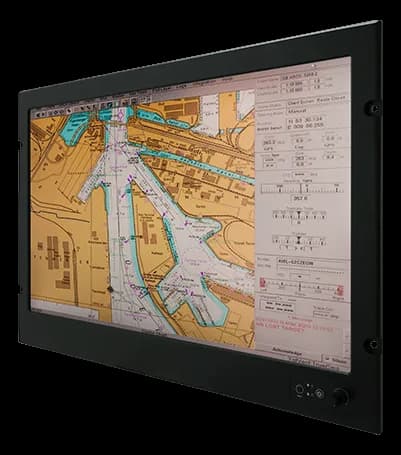

W24L100-MRA1IV3S24" fanless panel PC with an IP66 front and a wide-range DC input
- Manufacturer
W24L100-MRA1IV3S is a 24" industrial panel PC with passive cooling, intended for plants and HMI stations that require resistance to dust and liquids on the operator side. Panel or VESA bracket mounting allows it to be integrated in cabinets and on arms.
The front with IP66 rating protects against the ingress of dust and water jets, while the wide-range 9~36 V DC input makes it compatible with machine-side and vehicle power lines. The display handles an operating humidity range of 5~95%.
At a glance
- Display size: 24 ″
- Brightness: Up to 399 standard cd/m²
- Resolution: 1920x1080 FHD
- Contrast ratio: 5000:1
- USB ports: 2× USB 3.0
Technical specifications
| Display size | 24 ″ |
|---|---|
| Touchscreen | Resistive(default) |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1920x1080 FHD |
| Contrast ratio | 5000:1 |
| Viewing angle | 89,89,89,89 |
| Display colors | 16.7M Colors |
| Active area | 531.36 × 298.89 mm |
| Video outputs | 1× VGA (default)1× HDMI (opzionale)(optional) |
| Ethernet ports | 2× RJ45, 10/100/1000 Mbps |
|---|---|
| USB ports | 2× USB 3.0 |
| Serial interfaces | 1× RS-232/422/485 (default)2× RS-422/485, isolate (opzionale)(optional) |
| Other I/O | 1 x Power Button · 1 x Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 70 W |
| Mounting | VESA MountPanel Mount |
|---|---|
| Cutout dimensions | 570 × 357 mm |
| Weight | 10 kg |
| IP rating | Front IP66 |
|---|---|
| Cooling | Fanless |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
