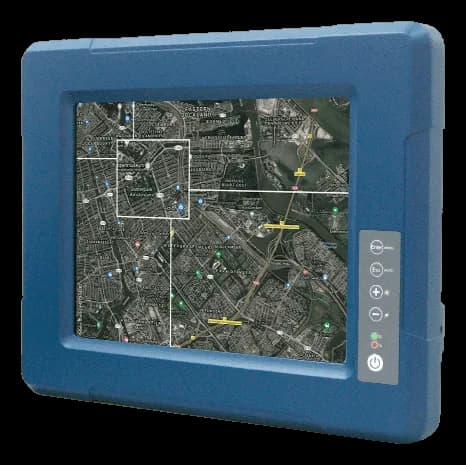

R10L100-MLT210.4" rugged monitor with IP65 rating over the entire structure
- Manufacturer
R10L100-MLT2 is a display in the Winmate rugged family for machine-side use, test benches and shop-floor stations where a consumer monitor cannot be installed without shortening its service life.
DC power provides for nominal voltages of 9, 12 or 36 V, a flexibility that helps when the same display has to be replicated across several cabinets. The model also tolerates relative humidity from 10 to 95% and storage temperatures from -20 to 70 °C.
At a glance
- Display size: 10.4 ″
- Resolution: 1024x768 XGA
- Brightness: 400-599 high cd/m²
- Contrast ratio: 1000:1
- AC/DC input: DC
Technical specifications
| Display size | 10.4 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Aspect ratio | 4:3 |
| Brightness | 400-599 high cd/m² |
| Touchscreen | Resistive(optional) |
| Video inputs | VGA(1 x VGA (Default), HDMI (Optional) · default) |
| Contrast ratio | 1000:1 |
| Viewing angle | 88° / 88° / 88° / 88° (L/R/U/D) |
| Display colors | 16.2M colori |
| Active area | 210.4 × 157.8 mm |
| Surface treatment | Anti-reflective (AR)(default) |
| OSD controls | 5 Keys: - , + , Power , Esc , Enter |
| Serial interfaces | 1× RS232 for Touch Screen(optional) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12 VDC (default) · 9~36 VDC wide range (opzionale) |
| Mounting | VESA Mount |
|---|---|
| Chassis material | alluminio, metallo |
| IP rating | Full IP65 |
|---|---|
| Operating temperature | -10–60 °C |
| Cooling | Fanless |
| Storage temperature | -20–70 °C |
| Certifications | FCCMIL-STD-810CE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
