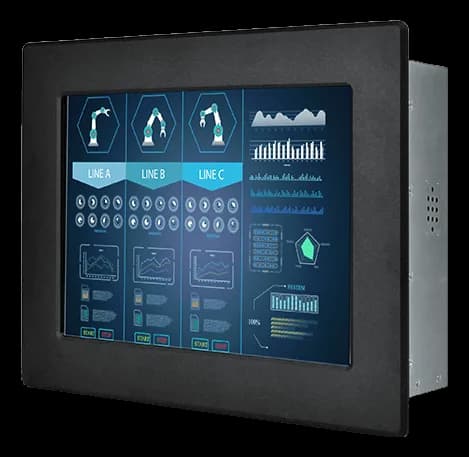

R10L100-IPA1WT10.4" Winmate industrial monitor with IP65 front
- Manufacturer
R10L100-IPA1WT is a Winmate industrial monitor for panel integration into machines, production lines and operator stations: the protected front allows its use where the exposed surface meets dust and splashes, while the electronics stay sheltered inside the cabinet.
The DC power input accepts nominal voltages selectable between 12 or 24 V, for connection to the plant DC lines; the declared operating range is -20~60 °C, with a storage temperature of -25~65 °C.
At a glance
- Display size: 10.4 ″
- Resolution: 800x600 SVGA
- Brightness: 400-599 high cd/m²
- Contrast ratio: 700:1
- USB ports: 1× USB for Touch Screen
Technical specifications
| Display size | 10.4 ″ |
|---|---|
| Resolution | 800x600 SVGA |
| Brightness | 400-599 high cd/m² |
| Touchscreen | Resistive(default) |
| Video inputs | VGA(default)HDMI(1 x HDMI (Optional) · optional)DVI(1 x DVI (Optional) · optional) |
| Aspect ratio | 4:3 |
| Contrast ratio | 700:1 |
| Viewing angle | 80,80,70,60 |
| Display colors | 16.2M Colors |
| Active area | 211.2 × 158.4 mm |
| USB ports | 1× USB for Touch Screen |
|---|---|
| Audio | Audio line in (3.5mm)(optional)2× Speaker(optional) |
| AC/DC input | DC |
|---|---|
| Power input | DC 12/24 V (nominali a scelta) |
| Mounting | VESA MountPanel Mount |
|---|---|
| Dimensions | 284 × 234 × 43 mm |
| Cutout dimensions | 264 × 216 mm |
| Chassis material | metallo |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -20–60 °C |
| Cooling | Fanless |
| Storage temperature | -25–65 °C |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
