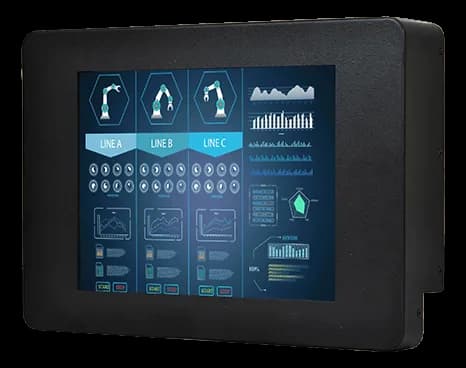

R08T200-RMT1WT8.4" Winmate industrial monitor with fanless design
- Manufacturer
R08T200-RMT1WT is a Winmate industrial monitor in a compact format for machines, control panels and operator stations: installation is flush with the panel, with the electronics protected inside the cabinet and only the display surface exposed to the operator.
The declared operating range is -20~60 °C, with a storage temperature of -25~65 °C; CE and FCC certifications accompany its use in industrial plants and machinery.
At a glance
- Display size: 8.4 ″
- Resolution: 800x600 SVGA
- Brightness: 400-599 high cd/m²
- Contrast ratio: 600:1
- USB ports: 1× USB for Touch Screen
Technical specifications
| Display size | 8.4 ″ |
|---|---|
| Resolution | 800x600 SVGA |
| Brightness | 400-599 high cd/m² |
| Touchscreen | Resistive(default) |
| Video inputs | VGA(default)DVI(1 x DVI (Optional) · optional)HDMI(1 x HDMI (Optional) · optional) |
| Aspect ratio | 4:3 |
| Contrast ratio | 600:1 |
| Viewing angle | 80,80,60,80 |
| Display colors | 16.2M Colors |
| Active area | 170.4 × 127.8 mm |
| USB ports | 1× USB for Touch Screen |
|---|---|
| Audio | 2× Speaker(optional)Audio line in (3.5mm)(optional) |
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Mounting | VESA MountPanel Mount |
|---|---|
| Weight | 1.9 kg |
| Chassis material | metallo |
| Operating temperature | -20–60 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -25–65 °C |
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
