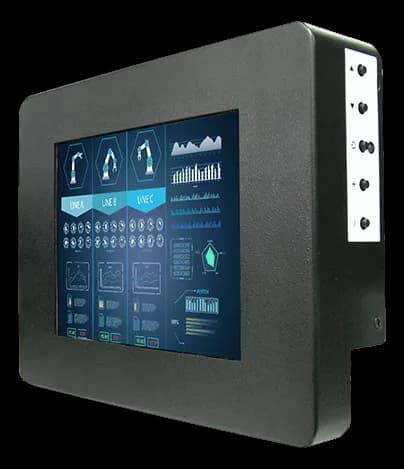

R06L200-RMA1WT6.5" Winmate industrial monitor with 700 cd/m² brightness
- Manufacturer
R06L200-RMA1WT is a Winmate industrial monitor in a compact format, designed for integration machine-side, in control panels and in stations where the usable panel space is limited. It is a flush-mount display intended for demanding working environments, from the production department to mobile applications.
The declared storage temperature covers -25~65 °C and the product is CE and FCC certified, in support of use in industrial plants and machinery.
At a glance
- Display size: 6.5 ″
- Resolution: 640x480 VGA
- Brightness: 600-999 outdoor cd/m²
- Contrast ratio: 600:1
- USB ports: 1× USB for Touch Screen
Technical specifications
| Display size | 6.5 ″ |
|---|---|
| Resolution | 640x480 VGA |
| Brightness | 600-999 outdoor cd/m² |
| Touchscreen | Resistive(optional) |
| Video inputs | VGA(default)DVI(1 x DVI (Optional) · optional)HDMI(1 x HDMI (Optional) · optional) |
| Aspect ratio | 4:3 |
| Contrast ratio | 600:1 |
| Viewing angle | 80,80,70,70 |
| Display colors | 16.2M Colors |
| Active area | 132.48 × 99.36 mm |
| USB ports | 1× USB for Touch Screen |
|---|---|
| Audio | Audio line in (3.5mm)(optional)2× Speaker(optional) |
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Mounting | VESA MountPanel Mount |
|---|---|
| Chassis material | metallo |
| Operating temperature | -20–60 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -25–65 °C |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
