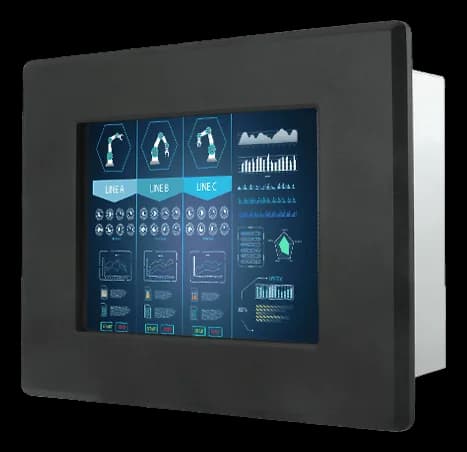

R08T200-IPT1WT8.4" Winmate industrial monitor with IP65 front
- Manufacturer
R08T200-IPT1WT is a Winmate industrial monitor in a compact format, intended for panel integration into machines, production lines and operator stations. The protected front allows its use where the exposed surface meets dust and splashes, while the electronics stay sheltered inside the cabinet.
The declared operating range is -20~60 °C, with a storage temperature of -25~65 °C; the profile is completed by CE and FCC certifications for use in plants and machinery.
At a glance
- Display size: 8.4 ″
- Resolution: 800x600 SVGA
- Brightness: 400-599 high cd/m²
- Contrast ratio: 600:1
- USB ports: 1× USB for Touch Screen
Technical specifications
| Display size | 8.4 ″ |
|---|---|
| Resolution | 800x600 SVGA |
| Brightness | 400-599 high cd/m² |
| Touchscreen | Resistive(default) |
| Video inputs | VGA(default)DVI(1 x DVI (Optional) · optional)HDMI(1 x HDMI (Optional) · optional) |
| Aspect ratio | 4:3 |
| Contrast ratio | 600:1 |
| Viewing angle | 80,80,60,80 |
| Display colors | 16.2M Colors |
| Active area | 170.4 × 127.8 mm |
| USB ports | 1× USB for Touch Screen |
|---|---|
| Audio | 2× Speaker(optional)Audio line in (3.5mm)(optional) |
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Mounting | Panel MountVESA Mount |
|---|---|
| Chassis material | metallo |
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -20–60 °C |
| Cooling | Fanless |
| Storage temperature | -25–65 °C |
| Certifications | CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
