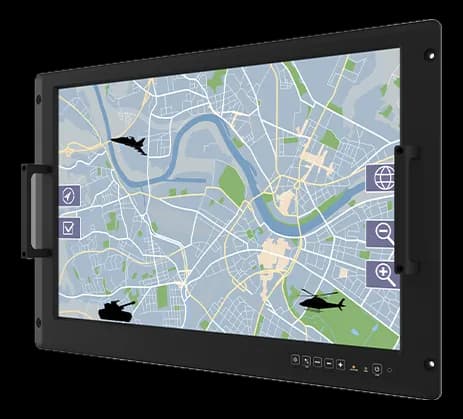

W24IT3S-RKS1ML24" rack-mount rugged panel PC with an automatic brightness sensor
- Manufacturer
W24IT3S-RKS1ML is a Winmate rugged panel PC for cabinets and control rooms, with a fanless aluminum and metal chassis for continuous service.
The features that set it apart are the operating range from 0 to 50 °C, with storage from -10 to 60 °C and humidity from 10 to 95%, and electromagnetic compatibility tested to MIL-STD-461. The CPU frequency runs from 2.4 to 4.4 GHz and the display contrast ratio is 1000.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 11th gen (Tiger Lake)
- CPU frequency: 2.4–4.4 GHz
- TPM: TPM 2.0
- Memory: 4GB (Default) GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| CPU generation | 11th gen (Tiger Lake) |
| Processor | Intel Core i5-1145G7 2.6GHz (up to 4.4GHz)(optional) |
| CPU frequency | 2.4–4.4 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB (Default) GB |
|---|
| Storage | 128GB, up to 2TB |
|---|
| Display size | 24 ″ |
|---|---|
| Resolution | 1920x1200 WUXGA |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Contrast ratio | 1000:1 |
| Viewing angle | 89,89,89,89 |
| Active area | 518.4 × 324.0 mm |
| Video outputs | 1× HDMI(optional) |
| OSD controls | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
| Ethernet ports | 2× Intel® Ethernet Controller2× RJ45 |
|---|---|
| USB ports | 2× USB 3.0 |
| Serial interfaces | 1× RS232/422/485 (Default RS232) (Default)1× RS232(optional) |
| Sensors | Built-in Light Sensor for auto brightness control |
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Mounting | Rack MountPanel Mount(optional)VESA Mount(optional) |
|---|---|
| Dimensions | 609.5 × 399.3 × 76.2 mm |
| Chassis material | alluminio, metallo |
| Operating temperature | 0–50 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -10–60 °C |
| Certifications | CEMIL-STD-461MIL-STD-810FCC |
|---|
| Operating systems | LinuxWindows 10 IoTWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
