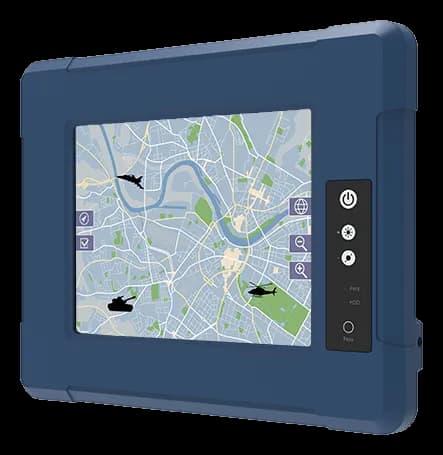

R08IB3S-MLU1Fanless rugged panel PC certified to MIL-STD-810 with an aluminum chassis
- Manufacturer
R08IB3S-MLU1 is a Winmate rugged panel PC in a compact format, suited to machine-side use and to stations where cabinet space is limited. Operation is provided from -20 to 60 °C, with storage admitted from -30 to 70 °C.
Power is 12 V DC on a MIL-DTL-38999/1 connector, with an extended 9~36 V input available on request; the system is offered with Linux or Windows 10 IoT and tolerates relative humidity up to 95%.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU generation: Bay Trail
- Processor: Intel Celeron N2930 1.83GHz (up to 2.16GHz)
- CPU frequency: 1.83–2.16 GHz
- RAM type: DDR3L
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| CPU generation | Bay Trail |
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| CPU frequency | 1.83–2.16 GHz |
| Memory | 4GB (Default) GB(DDR3L · 1600 MHz)8GB GB(DDR3L · optional · 1600 MHz) |
|---|---|
| RAM type | DDR3L |
| Storage | 1× mSATA SSD 128GB (Default)256GB(optional · mSATA)512GB(optional · mSATA) |
|---|
| Display size | 8.4 ″ |
|---|---|
| Resolution | 800x600 SVGA |
| Brightness | 600-999 outdoor cd/m² |
| Touchscreen | Resistive(optional) |
| Contrast ratio | 600:1 |
| Aspect ratio | 4:3 |
| Viewing angle | 75,75,60,70 |
| Active area | 170.4 × 127.8 mm |
| Video outputs | 1× HDMI(optional) |
| OSD controls | Button 4 Keys: Power, Brightness Up, Brightness Down, Reset |
| Ethernet ports | 2× Intel® Ethernet Controller2× RJ45 |
|---|---|
| USB ports | 1× USB3.01× USB2.0 |
| Serial interfaces | 1× RS232(Default)/422/485 |
| Other I/O | 4 Keys: Power, Brightness Up, Brightness Down, Reset |
| Wireless | Wi-Fi(optional) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12 V DC (connettore MIL-DTL-38999/1)9–36 V(optional) |
| Mounting | VESA Mount |
|---|---|
| Dimensions | 277 × 219.5 × 59.7 mm |
| Weight | 2.3 kg |
| Chassis material | alluminio, metallo |
| IP rating | Full IP65 |
|---|---|
| Operating temperature | -20–60 °C |
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | CEMIL-STD-810MIL-STD-461FCC |
|---|
| Operating systems | Windows 10 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
