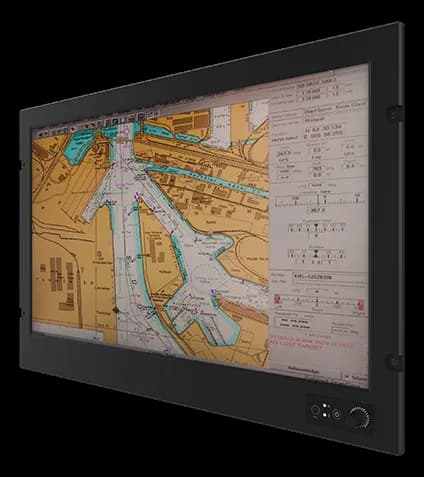

W24IT3S-MRA124" fanless panel PC with an IP66 front and an Intel Core CPU
- Manufacturer
W24IT3S-MRA1 is an industrial panel PC with a 24" display and fanless cooling, intended for installation in production environments and at operator stations. Mounting is to a panel or on a VESA bracket, with the Windows 10 IoT or Windows 11 IoT operating system.
The front with IP66 protection rating makes it suitable for contexts subject to dust and water jets. The DC power input accepts a wide 9 to 36 V range, with a declared consumption of 70 W, while the processing platform is based on an Intel Core i5 or i7 CPU with a 2.4~4.7 GHz frequency.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU frequency: 2.4–4.7 GHz
- Memory: 4GB (Default) GB
- Storage: 128GB (Default)
- Display size: 24 ″
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| Processor | Intel Core i7-1165G7 2.8GHz (up to 4.7GHz)(optional) |
| CPU frequency | 2.4–4.7 GHz |
| Memory | 4GB (Default) GB |
|---|
| Storage | 128GB (Default)256GB(optional)4TB(optional)512GB(optional)2TB(optional)1TB(optional) |
|---|
| Display size | 24 ″ |
|---|---|
| Touchscreen | Resistive(default) |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1920x1080 FHD |
| Contrast ratio | 5000:1 |
| Viewing angle | 89,89,89,89 |
| Active area | 531.36 × 298.89 mm |
| Video outputs | 1× HDMI (opzionale)(optional) |
| OSD controls | 1 x Power Button, 1 x Reset Button, 1 x The Dimming Knob |
| Ethernet ports | 2× 2.5GbE (RJ45)2× Intel Ethernet Controller |
|---|---|
| USB ports | 2× USB 3.0 |
| Serial interfaces | 4× RS-422/485, isolate (opzionale)(optional) |
| Audio | 2× speaker |
| Other I/O | 1 x Power Button · 1 x Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 70 W |
| Mounting | VESA MountPanel Mount |
|---|---|
| Dimensions | 593 × 384 × 68.5 mm |
| Cutout dimensions | 566 × 362 mm |
| Weight | 10.3 kg |
| Chassis material | Metal Housing with Aluminum Bezel |
| IP rating | Front IP66 |
|---|---|
| Cooling | Fanless |
| Certifications | FCCCE |
|---|
| Operating systems | Windows 10 IoTWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
