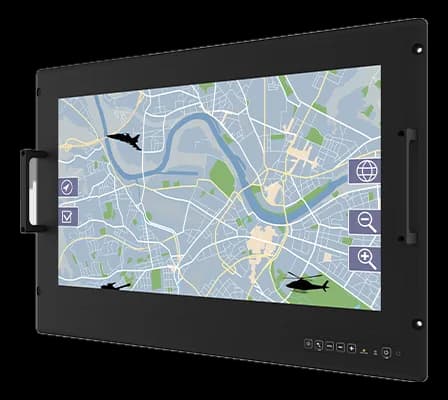

W24IT3S-MLA2FP24" fanless rugged panel PC with dual AC/DC power input
- Manufacturer
W24IT3S-MLA2FP is a Winmate rugged panel PC for HMI and monitoring in the plant, with an aluminum and metal chassis suited to installation on the shop floor.
The features that set it apart are the 250 cd/m² display and the operating range from 0 to 50 °C with humidity from 10 to 95%; storage is tolerated from -10 to 60 °C. The CPU frequency runs from 2.4 to 4.4 GHz and MIL-STD-810 testing attests to its environmental resistance.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 11th gen (Tiger Lake)
- CPU frequency: 2.4–4.4 GHz
- TPM: TPM 2.0
- Memory: 4GB (Default) GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| CPU generation | 11th gen (Tiger Lake) |
| Processor | Intel Core i5-1145G7 2.6GHz (up to 4.4GHz)(optional) |
| CPU frequency | 2.4–4.4 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB (Default) GB |
|---|
| Storage | 128GB, up to 2TB |
|---|
| Display size | 24 ″ |
|---|---|
| Resolution | 1920x1080 FHD |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | PCAP(optional)PCAP(default) |
| Contrast ratio | 3000:1 |
| Aspect ratio | 16:9 |
| Viewing angle | 89,89,89,89 |
| Active area | 527.04 × 296.46 mm |
| Video outputs | 1× HDMI(optional) |
| OSD controls | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
| Ethernet ports | 2× Intel® Ethernet Controller2× RJ-45 |
|---|---|
| USB ports | 2× USB 3.2 Gen 1 |
| Serial interfaces | 1× RS232(Default)/422/485 |
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Mounting | VESA MountRack Mount(optional) |
|---|---|
| Dimensions | 635.2 × 430.9 × 66 mm |
| Chassis material | alluminio, metallo |
| Operating temperature | 0–50 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -10–60 °C |
| Certifications | FCCCEMIL-STD-461MIL-STD-810 |
|---|
| Operating systems | Windows 11 IoTWindows 10 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
