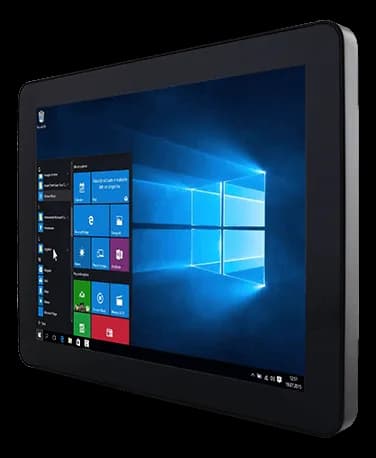

R10IB3S-GST210.4" rugged panel PC with PCAP touch and a 1000 cd/m² display
- Manufacturer
R10IB3S-GST2 is a Winmate rugged panel PC for operator interfaces on industrial machines and plants: a single device brings display and computing unit together on the cabinet front, with no video cabling towards a separate PC.
The model comes with Linux or Windows 10 IoT, installs on a VESA bracket and adopts a metal chassis; the declared contrast ratio is 1000, with storage admitted from -30 to 60 °C.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU generation: Bay Trail
- Processor: Intel Celeron N2930 1.83GHz (up to 2.16GHz)
- CPU frequency: 1.83–2.16 GHz
- TPM: TPM 2.0
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| CPU generation | Bay Trail |
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| CPU frequency | 1.83–2.16 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB(Default) GB8GB GB(optional) |
|---|
| Storage | 128GB (Default)256GB(optional)512GB(optional) |
|---|
| Display size | 10.4 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | 1000+ sunlight cd/m² |
| Touchscreen | PCAP |
| Contrast ratio | 1000:1 |
| Aspect ratio | 4:3 |
| Viewing angle | 88,88,88,88 |
| Active area | 210.4 × 157.8 mm |
| OSD controls | Button 1 x Power Button 1 x Reset Button |
| Ethernet ports | 1× Intel® Gigabit Ethernet Controller1× LAN-10/100/1000 (M12 type) |
|---|---|
| USB ports | 1× USB 2.0 (M12 type) |
| Serial interfaces | 1× RS232/422/485 (Default RS232)(M12 type) |
| Other I/O | 1× Power Button · 1× Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | VESA MountPanel Mount(optional) |
|---|---|
| Dimensions | 252.41 × 197.8 × 43 mm |
| Chassis material | metallo |
| IP rating | Full IP65 |
|---|---|
| Operating temperature | -15–55 °C |
| Cooling | Fanless |
| Storage temperature | -30–60 °C |
| Certifications | FCCMIL-STD-810CE |
|---|
| Operating systems | Windows 10 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
