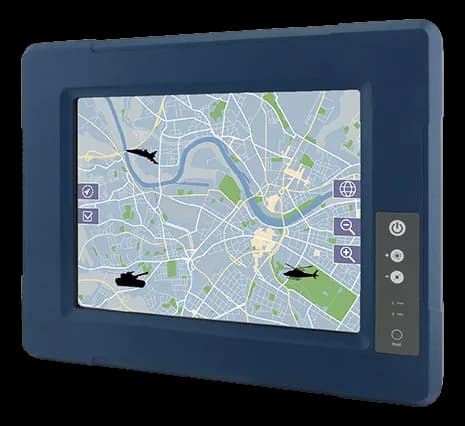

R10IB3S-MLT210.4" fanless rugged panel PC with full IP65 protection
- Manufacturer
R10IB3S-MLT2 is a Winmate rugged panel PC for the operator interface on machines and process lines, where the panel works continuously in the face of thermal swings and difficult environments.
Power is 12 V DC on a MIL-DTL-38999/1 connector, with an extended 9~36 V input available on request, and the system is offered with Linux or Windows 10 IoT. The declared contrast ratio is 1000, tolerated relative humidity reaches 95% and MIL-STD-810 compliance completes the set of environmental tests.
At a glance
- CPU class: Intel Celeron/Pentium
- CPU generation: Bay Trail
- Processor: Intel Celeron N2930 1.83GHz (up to 2.16GHz)
- CPU frequency: 1.83–2.16 GHz
- RAM type: DDR3L
Technical specifications
| CPU class | Intel Celeron/Pentium |
|---|---|
| CPU generation | Bay Trail |
| Processor | Intel Celeron N2930 1.83GHz (up to 2.16GHz) |
| CPU frequency | 1.83–2.16 GHz |
| Memory | 4GB (Default) GB(DDR3L · 1600 MHz)8GB GB(DDR3L · optional · 1600 MHz) |
|---|---|
| RAM type | DDR3L |
| Storage | 1× mSATA SSD 128GB (Default)256GB(optional · mSATA)512GB(optional · mSATA) |
|---|
| Display size | 10.4 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | 400-599 high cd/m² |
| Touchscreen | Resistive(optional) |
| Contrast ratio | 1000:1 |
| Aspect ratio | 4:3 |
| Viewing angle | 88,88,88,88 |
| Active area | 210.4 × 157.8 mm |
| Video outputs | 1× HDMI(optional) |
| OSD controls | Button 4 Keys: Power, Brightness Up, Brightness Down, Reset |
| Ethernet ports | 2× RJ452× Intel® Ethernet Controller |
|---|---|
| USB ports | 1× USB3.01× USB2.0 |
| Serial interfaces | 1× RS232(Default)/422/485 |
| Other I/O | 4 Keys: Power, Brightness Up, Brightness Down, Reset |
| Wireless | Wi-Fi(optional) |
|---|
| AC/DC input | DC |
|---|---|
| Power input | 12 V DC (connettore MIL-DTL-38999/1)9–36 V(optional) |
| Mounting | VESA Mount |
|---|---|
| Dimensions | 315.9 × 250.9 × 67 mm |
| Chassis material | alluminio, metallo |
| IP rating | Full IP65 |
|---|---|
| Operating temperature | -20–60 °C |
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | MIL-STD-810FCCMIL-STD-461CE |
|---|
| Operating systems | LinuxWindows 10 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Documentation

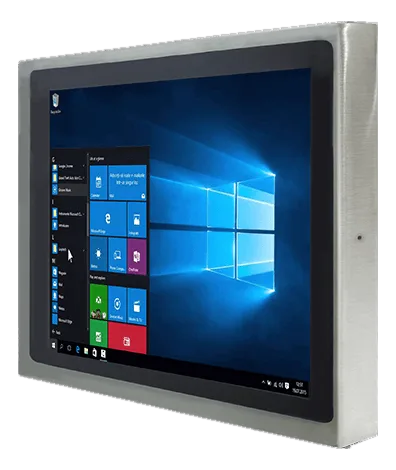

In the same family
