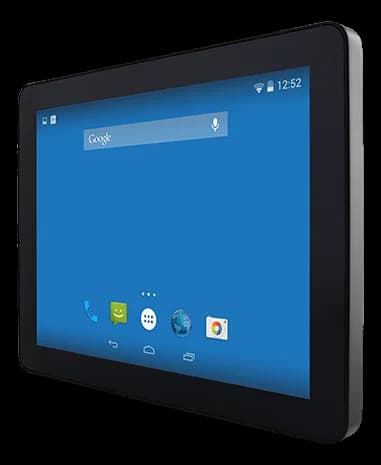

R10FA3S-GST210.4" IP65 rugged panel PC on a fanless ARM platform
- Manufacturer
R10FA3S-GST2 is a Winmate rugged panel PC for operator interfaces in harsh industrial environments, from the machine side to shop-floor stations: display and computing unit live in the same chassis, with no external PC to house.
The operating system is offered in Android or Linux versions; the display declares a contrast ratio of 1000. Storage is provided from -30 to 60 °C, with relative humidity tolerated up to 95%.
At a glance
- CPU class: ARM Cortex-A9
- Processor: NXP i.MX6 Dual Core, 1.0GHz
- CPU frequency: 1 GHz
- CPU cores: 2–4
- Memory: 1GB (Default) GB
Technical specifications
| CPU class | ARM Cortex-A9 |
|---|---|
| Processor | NXP i.MX6 Dual Core, 1.0GHzNXP i.MX6 Dual Core 1GHz (Optional Quad Core) |
| CPU frequency | 1 GHz |
| CPU cores | 2–4 |
| Memory | 1GB (Default) GBOnboard LPDDR3 1GB Full IP65 PCAP Panel PC GB2GB GB(optional) |
|---|---|
| RAM type | LPDDR3 |
| Storage | 1× Micro SD Card SloteMMC: Onboard 16 GB (Default)eMMC: Onboard 32 GB(optional) |
|---|
| Display size | 10.4 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | PCAP(default) |
| Contrast ratio | 1000:1 |
| Aspect ratio | 4:3 |
| Viewing angle | 88,88,88,88 |
| Active area | 210.4 × 157.8 mm |
| Ethernet ports | 1× LAN-10/100/1000 (M12 type) |
|---|---|
| USB ports | 1× USB 2.0 (M12 type) |
| Serial interfaces | 1× RS232 (M12 type)(Optional 422/485) |
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| IP rating | Full IP65 |
|---|---|
| Operating temperature | -15–55 °C |
| Cooling | Fanless |
| Storage temperature | -30–60 °C |
| Certifications | FCCCEMIL-STD-810 |
|---|
| Operating systems | LinuxAndroid |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
