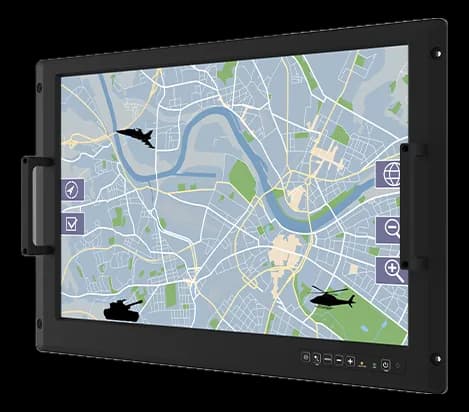

W24IT3S-MLS1-8924" rugged panel PC for plant HMI and control rooms
- Manufacturer
W24IT3S-MLS1-89 is a Winmate rugged panel PC for HMI stations and supervision in production shops, with an aluminum and metal chassis and fanless cooling.
The features that set it apart are the CPU frequency from 2.8 to 4.7 GHz and the operating range from 0 to 50 °C; the system is offered with Windows 10 IoT or Windows 11 IoT. Storage is tolerated from -10 to 60 °C and admissible humidity runs from 10 to 95%.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 11th gen (Tiger Lake)
- Processor: Intel Core i7-1165G7 2.8GHz (up to 4.7GHz)
- CPU frequency: 2.8–4.7 GHz
- Memory: 4GB (Default) GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| CPU generation | 11th gen (Tiger Lake) |
| Processor | Intel Core i7-1165G7 2.8GHz (up to 4.7GHz) |
| CPU frequency | 2.8–4.7 GHz |
| Memory | 4GB (Default) GB |
|---|
| Storage | 1× M.2 M-Key 2280 NVMe SSD, 128GB (Default) 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional)2TB(optional · M.2)256GB(optional · M.2)4TB(optional · M.2)512GB(optional · M.2)128GB (Default)(M.2)1TB(optional · M.2) |
|---|
| Display size | 24 ″ |
|---|---|
| Resolution | 1920x1200 WUXGA |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | Resistive(optional) |
| Contrast ratio | 1000:1 |
| Viewing angle | 89,89,89,89 |
| Active area | 518.4 × 324.0 mm |
| OSD controls | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
| Ethernet ports | 1× LAN (MIL-DTL-38999/3)2× 2.5 Giga LAN RJ45 Connector |
|---|---|
| USB ports | 1× USB 2.0 A Type (MIL-DTL-38999/3) |
| Serial interfaces | 2× RS-232 (MIL-DTL-38999/3) |
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10%; DC 9~36V, ±10% (Optional) |
| Mounting | VESA MountRack Mount(optional) |
|---|---|
| Dimensions | 609.5 × 399.3 × 76.2 mm |
| Chassis material | alluminio, metallo |
| Operating temperature | 0–50 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -10–60 °C |
| Certifications | CEMIL-STD-461FCCMIL-STD-810 |
|---|
| Operating systems | Windows 10 IoTWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
