W24IT3S-SPA224" fanless IP65 Panel PC with stainless steel frame and Core i5
- Manufacturer

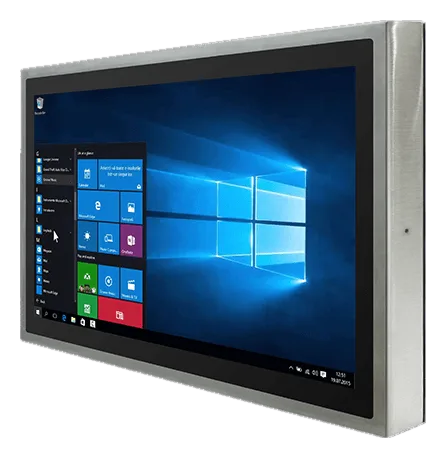

The W24IT3S-SPA2 is an industrial Panel PC with a 24" display and 250 cd/m² brightness, intended for production environments and operator stations where protection against liquids and dust and an absence of moving parts are required.
The stainless steel frame and the IP65 protection make it suited to environments subject to washdown, while the contrast ratio of 3000 supports the readability of the screen. Fanless operation eliminates the cooling fans, with a storage temperature from -20 to 60 C. The system integrates an Intel Core i5-1135G7 processor (2.4~4.2 GHz) with TPM 2.0.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
- CPU frequency: 2.4–4.2 GHz
- TPM: TPM 2.0
- Memory: 4GB(Default) (Default) GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| CPU frequency | 2.4–4.2 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB(Default) (Default) GB |
|---|
| Storage | 128GB SSD(Default) (Default) 256GB SSD (Optional) 512GB SSD (Optional) 1TB (Optional) 2TB (Optional) 4TB 1× SATA III for 2.5" SSD/HDD up to(2.5-SATA)1× SATA III for 2.5" SSD/HDD up to 2TB(optional · 2.5-SATA)1TB(optional · 2.5-SATA)256GB SSD(optional · 2.5-SATA)512GB SSD(optional · 2.5-SATA) |
|---|
| Display size | 24 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1920x1080 FHD |
| Contrast ratio | 3000:1 |
| Viewing angle | 89,89,89,89 |
| Active area | 527.04 × 296.46 mm |
| OSD controls | Button 1 x Power Button 1 x Reset Button |
| Optical bonding | Yes(optional) |
| Ethernet ports | 2× Intel Ethernet Controller1× GbE (RJ45), waterproof |
|---|---|
| USB ports | 1x M12 Waterproof Connector for2× USB 2.0 |
| Serial interfaces | 1× RS-232 (M12), waterproof |
| Other I/O | 1 x Power Button · 1 x Reset Button |
| AC/DC input | DC |
|---|---|
| Supply voltage | 12 V DC |
| Mounting | VESA MountYoke Mount(optional) |
|---|---|
| Chassis material | Stainless steel |
| IP rating | IP65 |
|---|---|
| Cooling | Fanless |
| Storage temperature | -20–60 °C |
| Certifications | CEFCC |
|---|
| Operating systems | LinuxWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
