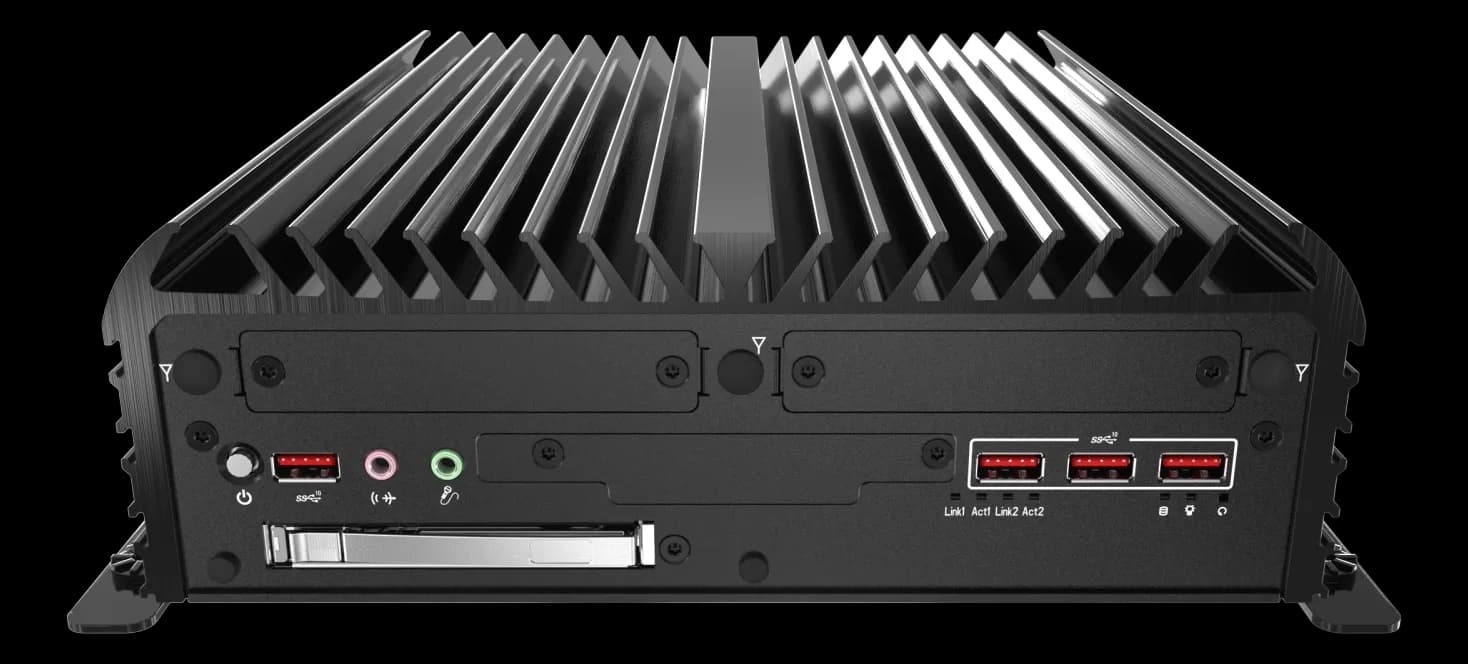

RCO-6000-RPL
- Manufacturer
- Configurations
- 1 available configurations
Intel Core i3/i5/i7/i9, fanless, Wall Mount, −25~70 °C
At a glance
- CPU generation: 12th gen (Alder Lake)
- AI module: Hailo-8
- Memory: 2× SODIMM (1 fronte + 1 retro)
- RAM type: DDR5
- Maximum RAM: 96 GB
Technical specifications
| CPU generation | 12th gen (Alder Lake)13th gen (Raptor Lake)14th gen (Raptor Lake-R)(optional) |
|---|---|
| Processor | Intel® Core™ Processors 12th/13th Gen (ADL/RPL) and Series 2 (BTL), LGA 1700Intel® Core™ i5-12500TE(optional)Intel® Core™ i5-13500TE/i5-12500TE(optional)Intel® Core™ i7-12700TE(optional)Intel® Core™ i7-13700TE/i7-12700TE(optional) |
| Chipset | R680E |
| Graphics | Intel® UHD Graphics 770/710 |
| AI module | Hailo-8 |
| Memory | 2× SODIMM (1 fronte + 1 retro) |
|---|---|
| RAM type | DDR5 |
| Maximum RAM | 96 GB |
| Storage | 1× bay 2.5" SATA HDD rimovibile (H 7 mm, hot-swap), RAID 0/11× 2.5" SATA SSD/HDD bay (H 9 mm), internal1× M.2 B-Key 2242/3042/3052 (PCIe x2: moduli AI/NVMe; PCIe x1 + USB 3.2 Gen1: 4G/5G)2x External SIM socket (Mini PCIE/M.2 B Key attached)1x mSATA (Shared by 1x Mini PCI Express)(SSD/HDD) |
|---|
| Number of displays | 3 |
|---|---|
| Video outputs | 1x DVI-I (or optional VGA1× DVI-I (1920×1200)(1920x1200)2× DisplayPort 1.4a (5120×3200, fino a 7680×4320)(5120x3200)Yes (by optional split cable)(VGA) |
| Ethernet ports | 2× 2.5 GbE (GbE1/GbE2: Intel I226), Wake-on-LAN, PXE, TSN |
|---|---|
| USB ports | 1× USB 2.0 (internal)8× USB 3.2 Gen2(10 Gbps) |
| Serial interfaces | 6× RS-232/422/485 (2× esterne + 4× interne) |
| Audio | 1× Line-out1× Mic-inRealtek ALC888S |
| Digital I/O | 8× DI (IN1~IN8) + 8× DO (OUT1~OUT8)(bidir) |
| CAN bus | 2× CAN 2.0 A/B (internal 2-pin header) |
| Other I/O | 5x WiFi Antenna Holes · 1x Power Switch · 1x AT/ATX Switch · 1x Remote Power On/Off · 1x PC/Car Mode Switch · 1x Removable CMOS Battery |
| Wireless | 5GBluetoothWi-Fi4G/LTE(optional)Wi-Fi 6 (802.11ax)(optional) |
|---|
| Expansion | 1× M.2 B-Key 2242/3042/3052 (moduli AI/NVMe/4G/5G) + 1× M.2 E-Key 2230 (PCIe x1, USB 2.0, CNVi)1× M.2 E-Key 2230 (PCIe x1, USB 2.0)1× Mini PCIe full-size (condiviso con 1× mSATA)M.2 E-Key (supporto Wi-Fi)Slot Mini PCIe (lato superiore), supporto 4G LTE4-port GbE module with Intel® I350 Chipset, RJ-45/M12 connector (PoE optional)2-Port RJ45 10GbE with Intel X710 Chipset(optional)4-Port USB 3.0 (share PCIe Gen2 x1 bandwidth)(optional) |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 9–48 V DC |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 240 × 79 × 261 mm |
| Weight | 4.5 kg |
| Chassis material | Aluminum, metal(extruded) |
| Operating temperature | -25–70 °C |
|---|---|
| Storage temperature | -30–85 °C |
| Certifications | CEFCCULUL 62368-1 |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RCO-6000-RPL-P |
