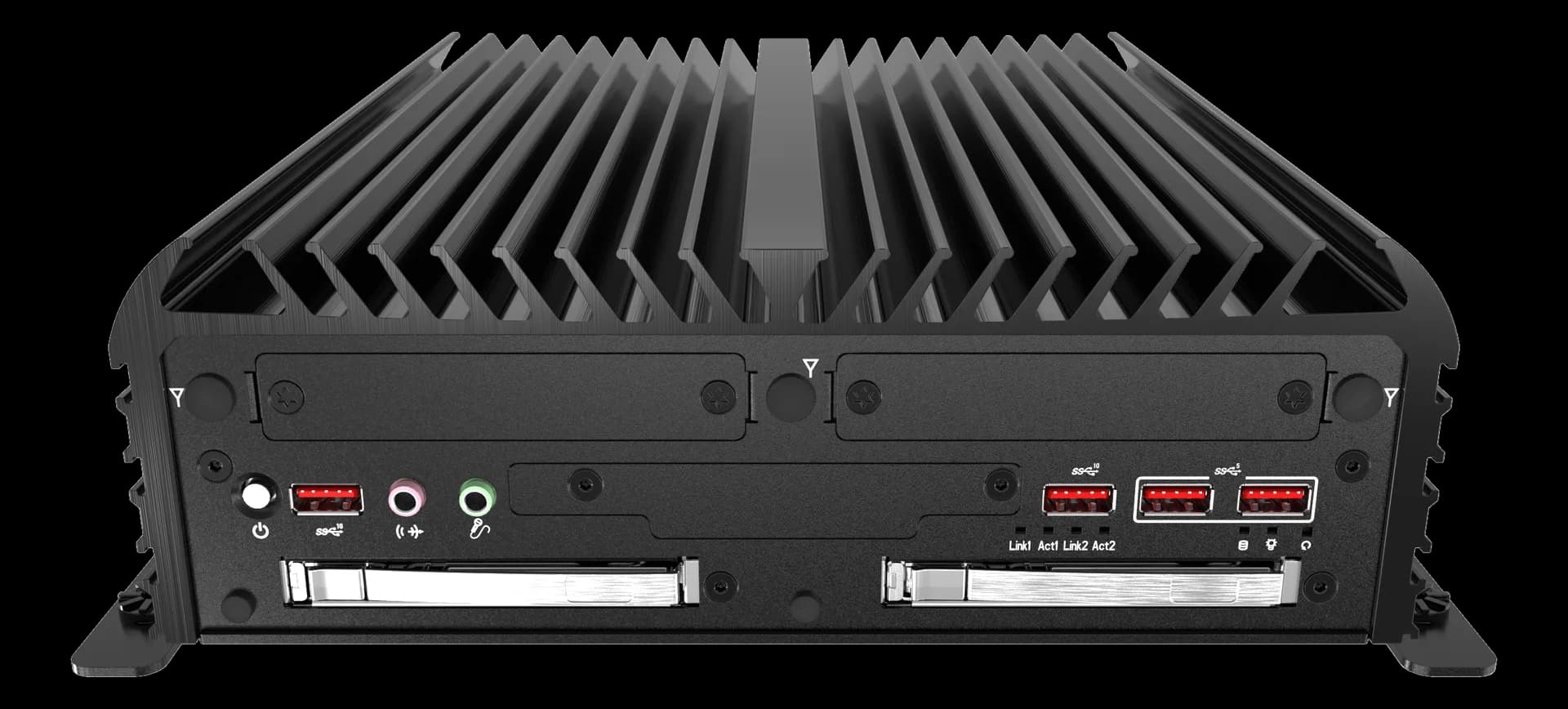

RCO-6000-CMLFanless wall-mount embedded computer with Intel Xeon W or 10th-gen Core
- Manufacturer
- Configurations
- 1 available configurations
RCO-6000-CML is Premio's fanless embedded computer on the Intel W480E chipset, for machine automation and for cabinets where fans are not allowed: a chassis with no moving parts, −25 to 70 °C.
It accepts Intel Xeon W and Intel Core up to the 10th-generation i9 at 35 W, up to 64 GB of DDR4 and Intel UHD 630 graphics across three independent outputs. DC power with overvoltage, overcurrent and reverse-polarity protection, ignition management and Wi-Fi, Bluetooth, 4G/LTE and 5G wireless. Certified CE, UL, FCC and UKCA, with TPM 2.0.
At a glance
- Intel Xeon W or Core i9
- Up to 64 GB of DDR4
- Three independent displays
- UL, CE and FCC certified
- Fanless, −25 to 70 °C
Technical specifications
| CPU generation | 10th gen (Comet Lake) |
|---|---|
| Processor | None Intel® Xeon® W-1290TE, 10 Cores, 20MB Cache, up to 4.5 GHz Intel® Core™ i9-10900TE, 10 Cores, 20MB Cache, up to 4.5 GHz Intel® Core™ i7-10700TE, 8 Cores, 116MB cache, up to 4.4 GHz Intel® Core™ i |
| Chipset | W480E |
| Graphics | Intel® UHD Graphics 630 |
| AI module | Hailo-8 |
| CPU TDP | 35 W |
| Memory | 2× SODIMM DDR4 2666/2933 MHz (260 pin), max 64 GB (ECC and non-ECC) |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 64 GB |
| Storage | 1× 2.5" SATA SSD/HDD bay (H 9 mm), internal2× bay 2.5" SATA HDD removable (H 7 mm, hot-swap), RAID 0/1/5NVMe(M.2)128GB 2.5-SATA (ordering option)(optional)128GB SSD/HDD (ordering option)(optional)1TB 2.5-SATA (ordering option)(optional)1TB SSD/HDD (ordering option)(optional)2TB 2.5-SATA (ordering option)(optional)2TB SSD/HDD (ordering option)(optional)4TB 2.5-SATA (ordering option)(optional)4TB SSD/HDD (ordering option)(optional)512GB 2.5-SATA (ordering option)(optional)512GB SSD/HDD (ordering option)(optional) |
|---|
| Number of displays | 3 |
|---|---|
| Video outputs | 1× DVI-D1× HDMIYes (by optional split cable)(VGA) |
| Ethernet ports | 2× RJ45 |
|---|---|
| USB ports | 1x Internal)2× USB 2.0 (internal headers)4× USB 3.2 Gen13× USB 3.2 Gen1(5 Gbps)6× USB 3.2 Gen2(10 Gbps) |
| Serial interfaces | 6× RS-232/422/485 (internal) |
| Audio | 1× Line-out1× Mic-inRealtek ALC888S |
| Digital I/O | 8× DI + 8× DO, isolated(in)8× DI + 8× DO, isolated(out) |
| CAN bus | 2× CAN 2.0 A/B (internal 2-pin header)None DB9, Dual Channel DB9, Single Channel |
| Other I/O | 5x WiFi Antenna Holes; 1x Power Switch, 1x AT/ATX Switch, 1x Remote Power On/Off; 1x PC/Car Mode Switch, 1x Delay Time Switch; 1x Removable CMOS Battery; 4x 4-Pin Power Connector, 1x 4-PIN FAN Connector |
| Wireless | 4G/LTE5GBluetoothWi-Fi |
|---|
| Expansion | Slot PCIe x1, x8, x162× Mini PCIe full-size2× Mini PCIe full-size (1 shared with 1× mSATA) + 1× M.2 E-Key2× Universal I/O Bracket (interfaccia Mini PCIe)2x PCI (Model 2I), 2x PCIe x16 (8-lane) (Model 2E)1× M.2 M-Key 2242/2260 (PCIe x4, AI/storage NVMe modules)(AI Module) |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 9–48 V DC |
| Ignition management | Power Ignition Management |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 240 × 79 × 261 mm |
| Weight | 3.5 kg |
| Chassis material | Aluminum, metal(extruded) |
| Cooling | Fanless |
|---|---|
| Operating temperature | -25–70 °C |
| Storage temperature | -30–85 °C |
| Certifications | CEFCCUKCAUL |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RCO-6000-CML-P |
