RCO-6000-CML-2Fanless embedded computer with Intel 10th gen Comet Lake and W480E chipset
- Manufacturer
- Configurations
- 3 available configurations

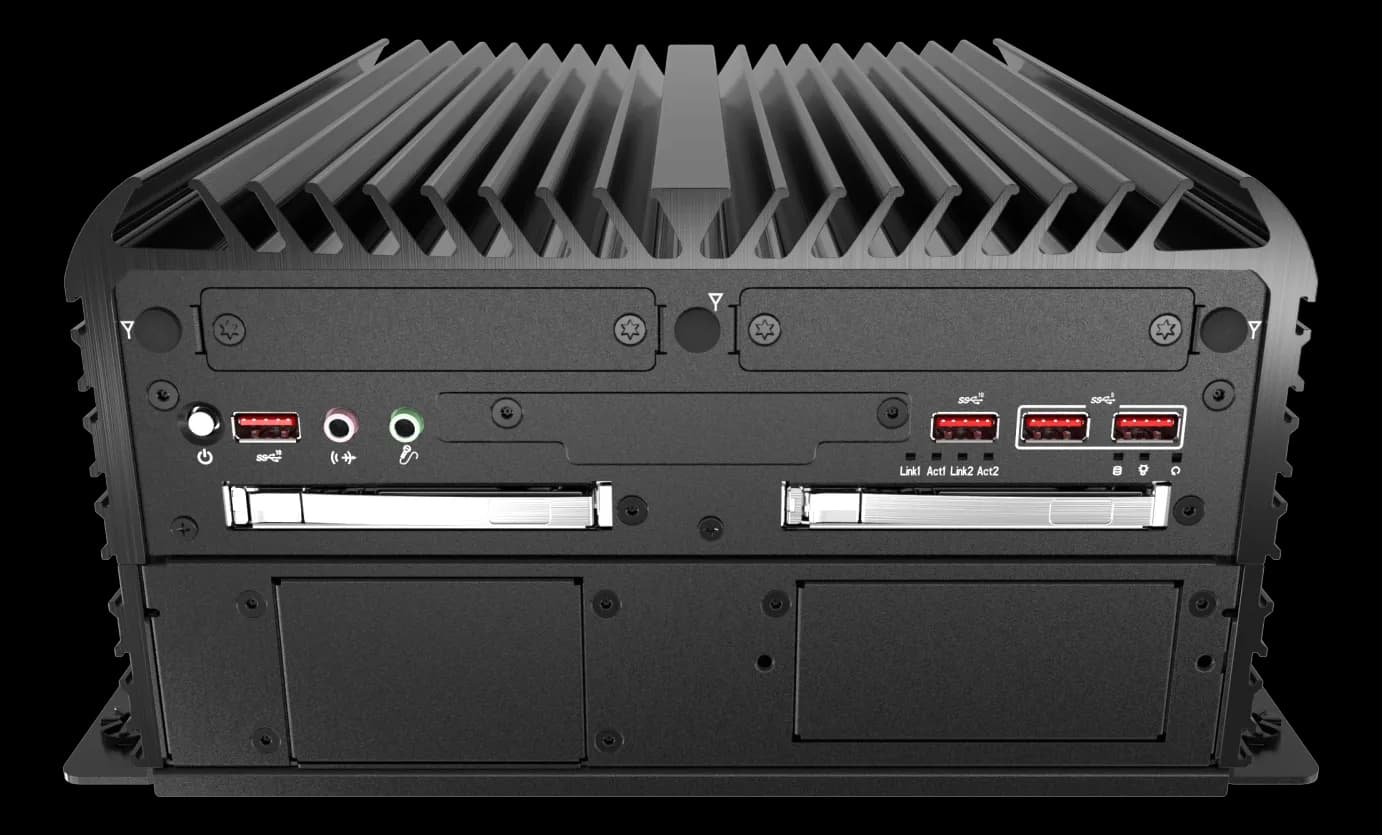

RCO-6000-CML-2 is a fanless industrial embedded computer built on the LGA 1200 socket with Intel 10th generation Comet Lake processors and W480E chipset. It provides two expansion slots, a 9–48 VDC power input and triple independent display support, plus the Hailo-8 AI accelerator rated at 26 TOPS. Designed for wall mount installation, it operates from −25 to 70 °C and withstands shock and vibration according to MIL-STD-810H. Compliance includes UL 62368-1, CE and FCC Class A.
At a glance
- Hailo-8 AI accelerator, 26 TOPS
- 9–48 VDC input
- Shock and vibration per MIL-STD-810H
- Triple independent display
Technical specifications
| CPU generation | 10th gen (Comet Lake) |
|---|---|
| Processor | Support 10th Gen Intel® CML S (LGA 1200)Intel® Core™ i3-10100TE(optional)Intel® Core™ i5-10500TE(optional)Intel® Core™ i7-10700TE(optional)Intel® Core™ i9-10900TE(optional)Intel® Xeon® W-1290TE(optional) |
| Chipset | W480E |
| Graphics | Intel® UHD Graphics 630 |
| AI module | Hailo-8 |
| Memory | 2× SODIMM DDR4 260-pin 2666/2933 MT/s |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 64 GB |
| Storage | 1× Internal 2.5" SATA/SSD HDD Bay (support H=9mm)2x Removable 2.5" SATA HDD Bay2x External SIM socket (Mini PCIE attached)(optional) |
|---|
| Number of displays | 3 |
|---|---|
| Video outputs | 2× DisplayPort, support resolution 4096× 2304, DP++ ·1× DVI-I, support resolution 1920× 1200 |
| Ethernet ports | GbE1: Intel I219 (Support Wake-on-LAN and PXE) · GbE2: Intel I210 (Support Wake-on-LAN and PXE) |
|---|---|
| USB ports | 6× USB 3.2 Gen 2 (10 Gbps) · 3× USB 3.2 Gen 1 (5 Gbps, 1× Internal)2× USB 2.0 header (internal) |
| Serial interfaces | 2× RS-232/422/485 ; 6× RS-232/422/485 (internal) |
| Audio | 1× Mic-in, 1× Line-out |
| Digital I/O | 8 in / 8 out (Isolated) |
| CAN bus | 2× CAN 2.0 A/B 2-pin Internal header |
| Wireless | 4G/LTE5GWi-Fi 6 (802.11ax)Bluetooth(5.0)Wi-Fi(6) |
|---|
| Expansion | 2x Full-size Mini PCIe1× M.2 for 5G (B Key, PCIe x1, USB 3.0, 3042/3052), Including 2× SIM socket, 1× SIM switch (1× Universal Slot Only)(optional)1x PCI (Model 2C) 2x PCI (Model 2I)(optional)1x PCIe x16 (Model 2C) 2x PCIe x16 (8-lane) (Model 2E)(optional)4-Port USB with Renesas uPD720201K8 host controller (share PCIe Gen2 x1 bandwidth)(optional) |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 9–48 V |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 240 (W) x 261 (D) x 126.8 (H) mm |
| Weight | 5.6 kg |
| Chassis material | Extruded Aluminum with Heavy Duty Metal |
| Cooling | Fanless |
|---|---|
| Operating temperature | -25–70 °C |
| Storage temperature | -30–85 °C |
| Certifications | CEUL 62368-1FCC(class A) |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RCO-6000-CML-2C-P |
| RCO-6000-CML-2E-P |
| RCO-6000-CML-2I-P |
