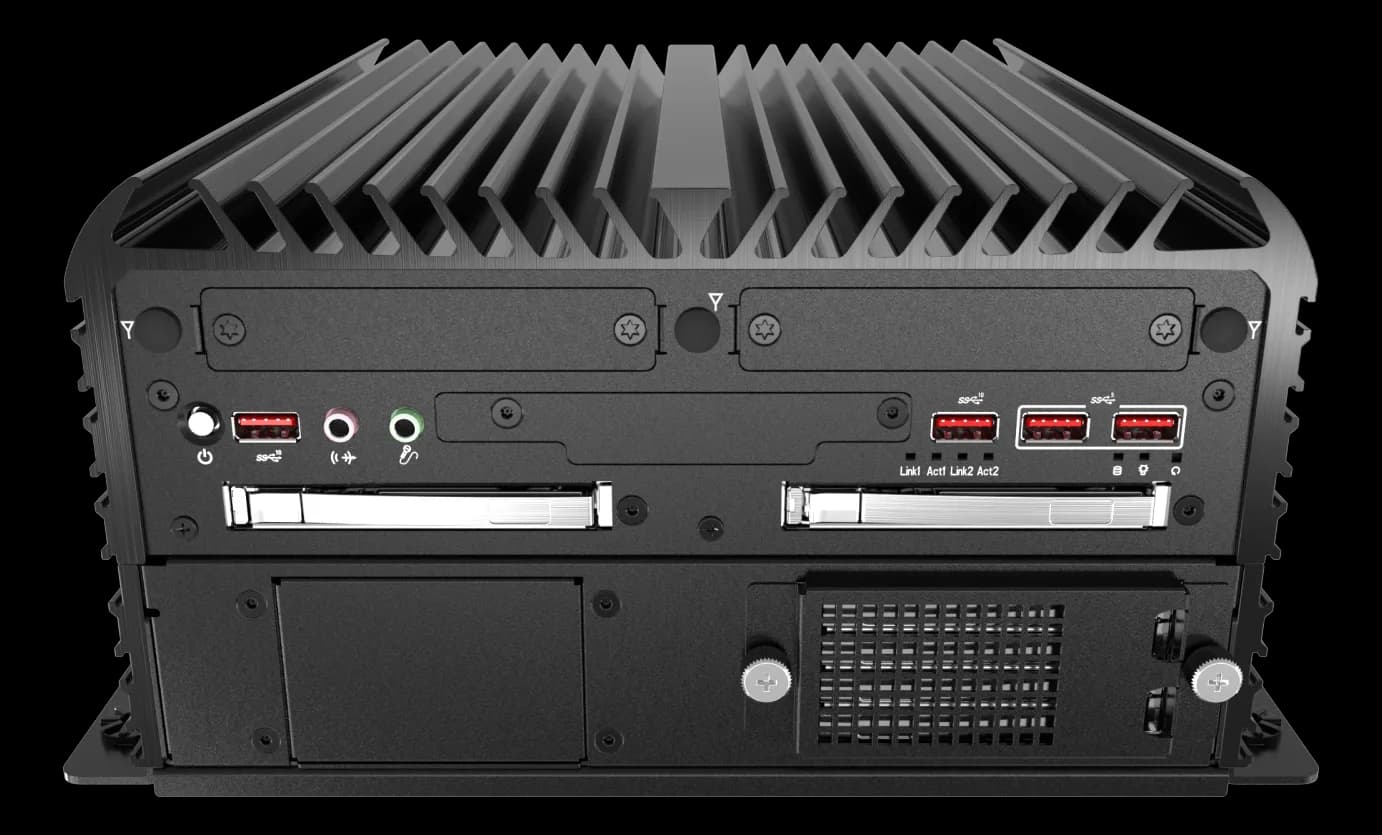

RCO-6000-CML-2-4B7MEmbedded computer for AI inference with Intel 10th Gen LGA 1200 and Hailo-8 modules
- Manufacturer
- Configurations
- 1 available configurations
The Premio RCO-6000-CML-2-4B7M is an embedded computer for AI inference built around an LGA 1200 socket with Intel W480E chipset, supporting Intel Xeon or Core i3/i5/i7/i9 processors. It supports up to 4 Hailo-8 modules for acceleration and offers PCIe x16 and PCI expansion, six 2.5" SATA hot-swap bays and triple independent display. With 9–48 VDC input, wall mount installation, −25~70 °C operating range and a design based on MIL-STD-810H for shock and vibration, it complies with UL 62368-1, CE and FCC Class A.
At a glance
- Supports up to 4 Hailo-8 modules
- 9–48 VDC input
- Six 2.5" SATA hot-swap bays
- Designed to MIL-STD-810H for shock and vibration
- Triple independent display
Technical specifications
| Processor | Support 10th Gen Intel® CML S (LGA 1200)Intel® Core™ i7-10700TE(optional) |
|---|---|
| Chipset | W480E |
| Graphics | Intel® UHD Graphics 630 |
| AI module | Hailo-8 |
| Memory | 2× SODIMM DDR4 2666/2933 MT/s |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 64 GB |
| Storage | 2x External SIM socket (Mini PCIE attached)1x Internal 2.5" SATA/SSD HDD Bay (support H=9mm)(optional)6x 7mm Hot-swappable 2.5" SATA HDD/SSD Bay(optional) |
|---|
| Number of displays | 3 |
|---|---|
| Video outputs | 1× DVI-I, support resolution 1920× 12002x DisplayPort, support resolution 4096 x 2304, DP++ |
| Ethernet ports | GbE1: Intel I219 (Support Wake-on-LAN and PXE) · GbE2: Intel I210 (Support Wake-on-LAN and PXE) |
|---|---|
| USB ports | 6× USB 3.2 Gen 2 (10 Gbps) · 3× USB 3.2 Gen 1 (5 Gbps, 1× Internal)2× USB 2.0 header (internal) |
| Serial interfaces | 2× RS-232/422/485 ; 6× RS-232/422/485 (internal) |
| Audio | 1× Mic-in, 1× Line-out |
| Digital I/O | 8 in / 8 out (Isolated) |
| CAN bus | 2× CAN 2.0 A/B 2-pin Internal header |
| Wireless | 4G/LTE5GWi-Fi 6 (802.11ax)Bluetooth(5.0)Wi-Fi(6) |
|---|
| Expansion | 2x Full-size Mini PCIe1x M.2 (E Key, PCIe x1, USB 2.0, 2230)(optional)1x PCI(optional)1x PCIe x16(optional) |
|---|
| Supply voltage | 9–48 V |
|---|
| Mounting | Wall Mount |
|---|---|
| Dimensions | 240 (W) x 261 (D) x 126.8 (H) mm |
| Weight | 5.7–5.85 kg |
| Chassis material | Extruded Aluminum with Heavy Duty Metal |
| Operating temperature | -25–70 °C |
|---|---|
| Storage temperature | -30–85 °C |
| Certifications | CEUL 62368-1FCC(class A) |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RCO-6000-CML-2C-4B7M-P |
