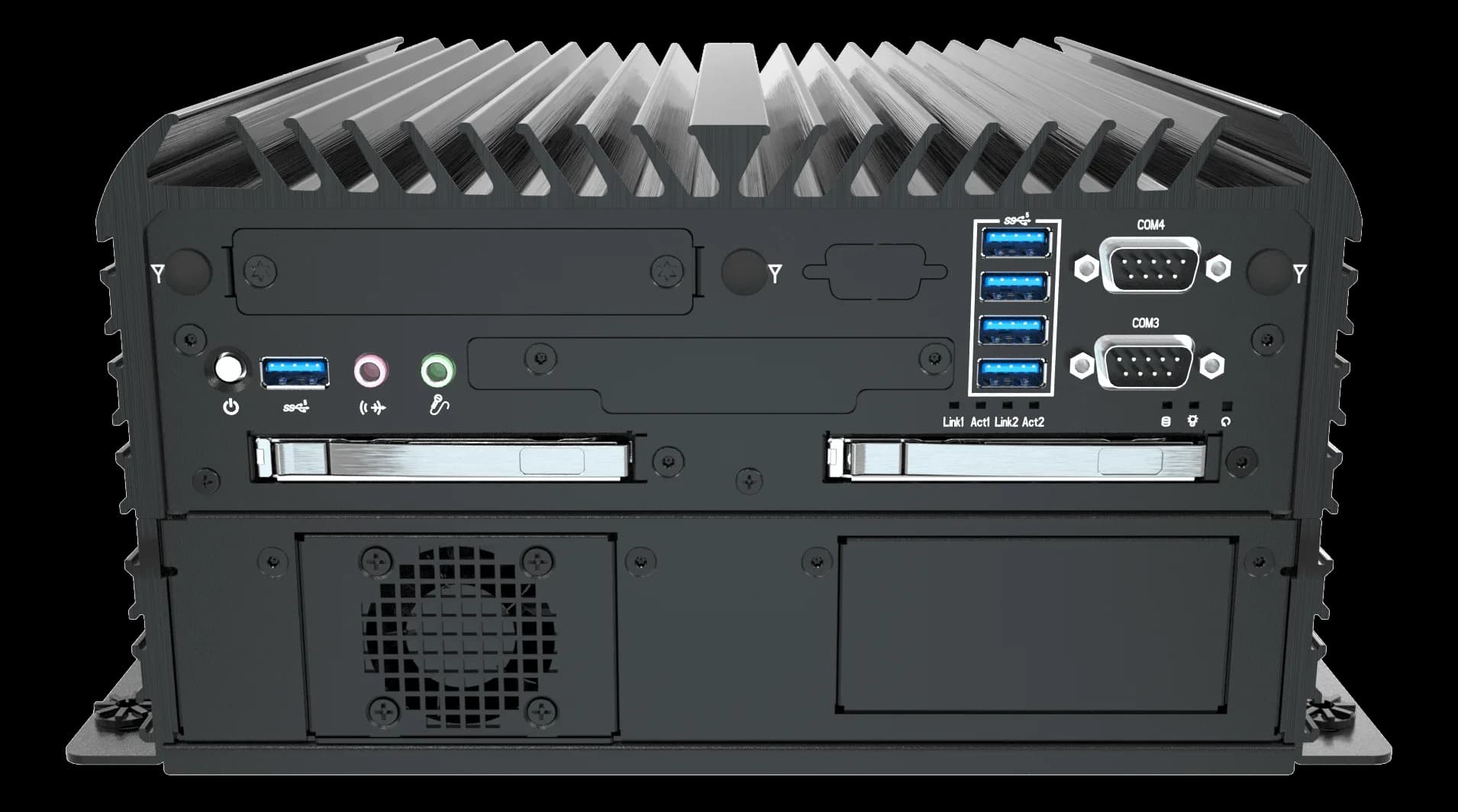

RCO-6000-CFLFanless wall-mount embedded computer with 9th-generation Intel Core
- Manufacturer
- Configurations
- 1 available configurations
RCO-6000-CFL is Premio's fanless embedded computer on the Intel Q370 chipset, for wall mounting inside a control cabinet and on board vehicles and rolling stock: fanless chassis, −25 to 70 °C.
It takes 9th-generation Intel Core i3, i5, i7 and i9 at 35 W, up to 64 GB of DDR4 and Intel UHD 610/630 graphics across three independent outputs. Power is DC, with overvoltage, overcurrent and reverse-polarity protection and vehicle ignition management; wireless covers Wi-Fi, Bluetooth, 4G/LTE and 5G. Certified CE, FCC, UKCA, E-Mark, EN 50155 and EN 50121, with TPM 2.0.
At a glance
- 9th-generation Intel Core, 35 W
- Up to 64 GB of DDR4
- Three independent displays
- EN 50155 and E-Mark certified
- Fanless, −25 to 70 °C
Technical specifications
| CPU generation | 9th gen (Coffee Lake-R) |
|---|---|
| Processor | None Intel® Core™ i5-9500TE, 6 Cores, 9MB Cache, up to 3.6 GHz, 35W Intel® Core™ i7-9700TE, 8 Cores, 12MB cache, up to 3.8 GHz, 35WSupport 9th Gen Intel® Core™ CFL-R S Processor (LGA 1151, 35W TDP)(optional) |
| Chipset | Q370 |
| Graphics | Intel® UHD Graphics 610/630 |
| AI module | Hailo-8(optional) |
| CPU TDP | 35 W |
| Memory | 2× SODIMM DDR4 2400/2666 MHz (260 pin), max 64 GBNone 8GB GB(DDR4) |
|---|---|
| RAM type | DDR4 |
| Maximum RAM | 64 GB |
| ECC support | No |
| Storage | 1× mSATA (shared with 1× Mini PCIe)2× bay 2.5" SATA HDD (H 7 mm), hot-swap, RAID 0/1/5/102× bay 2.5" SATA HDD (H 9 mm), internal2× removable 2.5" SATA HDD bays (H 7 mm, hot-swap), RAID 0/1/5/10128GB SSD/HDD (ordering option)(optional)1TB M.2 (ordering option)(optional)1TB SSD/HDD (ordering option)(optional)250GB M.2 (ordering option)(optional)2TB M.2 (ordering option)(optional)2TB SSD/HDD (ordering option)(optional)4TB SSD/HDD (ordering option)(optional)500GB M.2 (ordering option)(optional)512GB SSD/HDD (ordering option)(optional) |
|---|
| Number of displays | 3 |
|---|---|
| Video outputs | 1× DVI-D1× HDMI1× DVI-I (1920×1200)(1920x1200)2× DisplayPort (4096×2304)(4096x2304)Yes (by optional split cable)(VGA) |
| Ethernet ports | 2× RJ4510 GbE1~GbE2: Intel X710-AT2(optional)GbE3~GbE6: Intel I350-AM4(optional) |
|---|---|
| USB ports | USB 3.2 Gen 2 、USB 3.2 Gen 1、USB2.01× USB 3.2 Gen1 (internal header)(5 Gbps)4× USB 3.2 Gen2(10 Gbps)5× USB 3.2 Gen1(5 Gbps) |
| Serial interfaces | 2× RS-232/422/485 + 4× RS-232/422/485 (internal) — 6 total |
| Audio | 1× Line-out1× Mic-inRealtek ALC888S |
| Digital I/O | 8× DI + 8× DO, isolated(in)8× DI + 8× DO, isolated(out) |
| Other I/O | 5x WiFi Antenna Holes · 1x Power Switch · 1x AT/ATX Switch · 1x Remote Power On/Off · 1x PC/Car Mode Switch · 1x Delay Time Switch · 1x Removable CMOS Battery |
| Wireless | 4G/LTE5GBluetoothWi-Fi |
|---|
| Expansion | 1× PCIe x16 (per GPU)1× Universal I/O Bracket (interfaccia Mini PCIe)Slot PCIe x1, x8, x162× Mini PCIe full-size2× Mini PCIe full-size (1× shared with mSATA)1× Universal I/O Bracket(Mini-PCIe) |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 9–48 V DC |
| Ignition management | Power Ignition Management |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 240 × 79.2 × 261 mm |
| Weight | 8.25 kg |
| Chassis material | Aluminum, metal(extruded) |
| Cooling | Fanless |
|---|---|
| Operating temperature | -25–70 °C |
| Storage temperature | -30–85 °C |
| Certified market sectors | RailwayAutomotive |
|---|---|
| Certifications | CEE-MarkEN 50121EN 50155FCCUKCA |
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RCO-6000-CFL-P |
