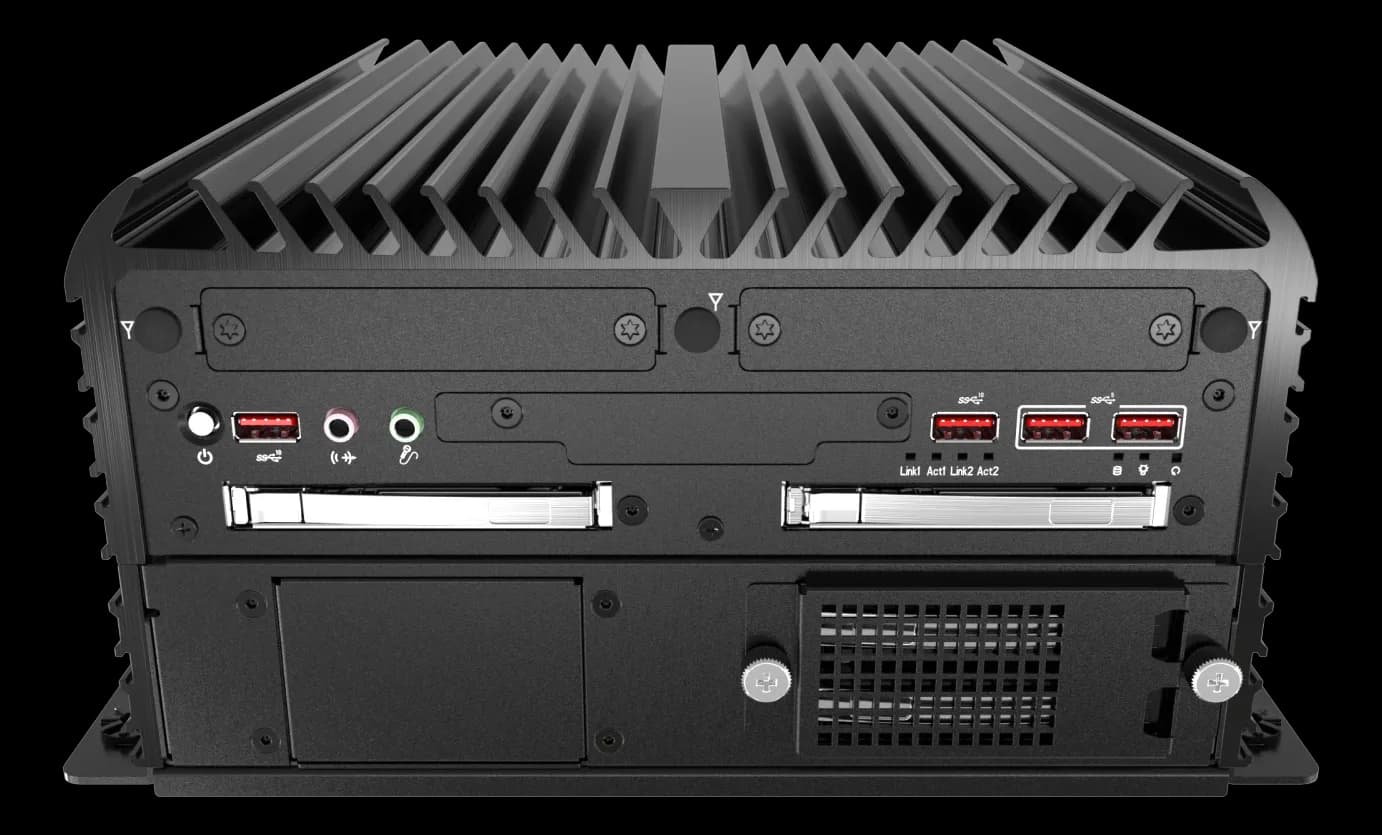

RCO-6000-CML-2-2B15MEmbedded computer for AI inference with Intel 10th gen Comet Lake and Hailo-8 module
- Manufacturer
- Configurations
- 1 available configurations
RCO-6000-CML-2-2B15M is an embedded system for AI inference on the machine, with extruded aluminium chassis, wall mount and 240 x 261 x 126.8 mm footprint. The declared operating range runs from −25 to 70 °C with 35 W TDP CPUs.
Acceleration runs on two paths: the Hailo-8 module declares 26 TOPS at 2.5 W, while the PCIe x16 slot accepts the GPUs on the AVL — NVIDIA RTX A1000, NVIDIA RTX 2000 Ada Generation and RTX 4000 SFF Ada Generation. The LGA 1200 socket covers from Intel Core i3-10100TE up to Intel Xeon W-1290TE, with DDR4 SO-DIMM memory up to 64 GB, ECC or non-ECC.
The family also lists the RCO-6000-CML-2C-2B15M-P configuration, available with power adapter.
At a glance
- Supports up to 4 Hailo-8 modules
- 9–48 VDC input
- RAID 0/1/5/10 on SATA bays
- Shock and vibration per MIL-STD-810H
- Integrated TPM 2.0
Technical specifications
| CPU generation | 10th gen (Comet Lake) |
|---|---|
| Processor | Support 10th Gen Intel® CML S (LGA 1200) |
| Chipset | W480E |
| Graphics | Intel® UHD Graphics 630 |
| AI module | Hailo-8 |
| RAM type | DDR4 |
|---|---|
| Maximum RAM | 64 GB |
| ECC support | Max. up to 64GB (ECC and Non-ECC) |
| Storage | 1x Internal 2.5" SATA/SSD HDD Bay (support H=9mm)2x 7mm, 2x 15mm Hot-swappable 2.5" SATA HDD/SSD Bay(optional)2x External SIM socket (Mini PCIE attached)(optional) |
|---|
| Number of displays | 3 |
|---|---|
| Video outputs | 2× DisplayPort, support resolution 4096× 2304, DP++1× DVI-I, support resolution 1920× 1200 |
| Ethernet ports | GbE1: Intel I219 (Support Wake-on-LAN and PXE) · GbE2: Intel I210 (Support Wake-on-LAN and PXE) · 2× RJ45 |
|---|---|
| USB ports | 6× USB 3.2 Gen 2 (10 Gbps) · 3× USB 3.2 Gen 1 (5 Gbps, 1× Internal)2× USB 2.0 header (internal) |
| Serial interfaces | 2× RS-232/422/485 ; 6× RS-232/422/485 (internal) |
| Audio | 1× Mic-in, 1× Line-out |
| Digital I/O | 8 in / 8 out (Isolated) |
| CAN bus | 2× CAN 2.0 A/B 2-pin Internal header |
| Wireless | 4G/LTE5GWi-Fi 6 (802.11ax)Bluetooth(5.0)Wi-Fi(6) |
|---|
| Expansion | 2x Full-size Mini PCIe1x M.2 (E Key, PCIe x1, USB 2.0, 2230)(optional)1x PCI(optional)1x PCIe x16(optional) |
|---|
| AC/DC input | DC |
|---|---|
| Supply voltage | 9–48 V |
| Mounting | Wall Mount |
|---|---|
| Dimensions | 240 (W) x 261 (D) x 126.8 (H) mm |
| Weight | 5.7–5.85 kg |
| Chassis material | Extruded Aluminum with Heavy Duty Metal |
| Operating temperature | -25–70 °C |
|---|---|
| Storage temperature | -30–85 °C |
| Certifications | CEUL 62368-1FCC(class A) |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RCO-6000-CML-2C-2B15M-P |
