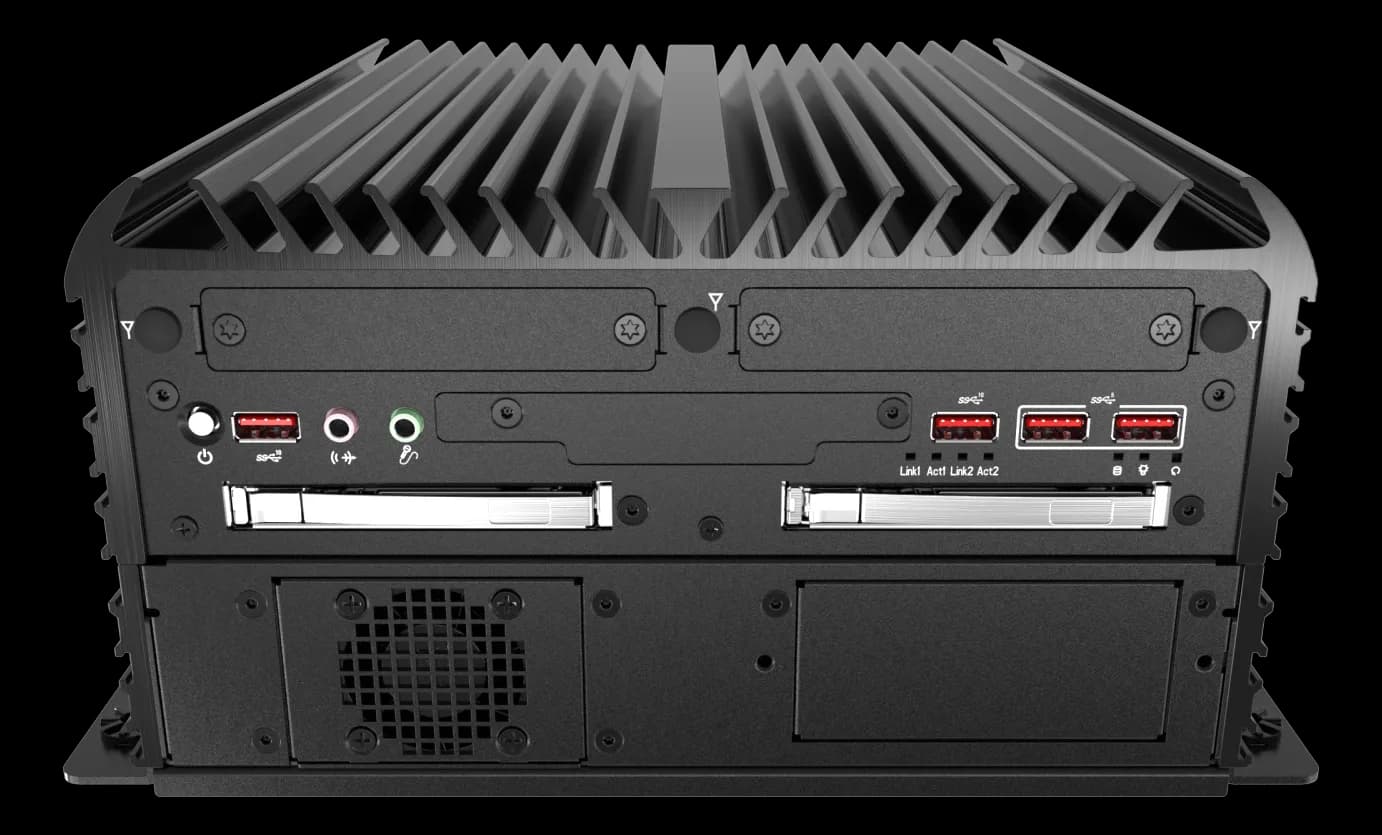

RCO-6000-CML-2060SEmbedded computer for AI inference with integrated NVIDIA GeForce RTX 2060 Super
- Manufacturer
- Configurations
- 1 available configurations
RCO-6000-CML-2060S is a fanless embedded computer for AI inference, based on Intel 10th gen Comet Lake processors (Intel Xeon or Core i3/i5/i7/i9) with W480E chipset and extruded aluminium chassis. It integrates an NVIDIA GeForce RTX 2060 Super GPU and supports up to four Hailo-8 modules. Power input is 12–48 VDC, with isolated DIO 8 in / 8 out and integrated TPM 2.0. Wall mount installation, operating range −25~70 °C, shock and vibration according to MIL-STD-810H, with CE, FCC Class A and IEC 62368-1 compliance.
At a glance
- Supports up to four Hailo-8 modules
- 12–48 VDC input
- Shock and vibration per MIL-STD-810H
- Isolated DIO, 8 in / 8 out
- Integrated TPM 2.0
Technical specifications
| CPU generation | 10th gen (Comet Lake) |
|---|---|
| Processor | Intel® Core™ i7-10700TE(optional) |
| Chipset | W480E |
| Graphics | Intel® UHD Graphics 610/630(optional)NVIDIA GeForce RTX 2060 Super(optional) |
| AI module | Hailo-8 |
| RAM type | DDR4 |
|---|---|
| Maximum RAM | 64 GB |
| Storage | 1x Internal 2.5" SATA/SSD HDD Bay (support H=9mm)(optional)2x Removable 2.5" SATA HDD Bay (support H=7mm, Hot-swappable)(optional) |
|---|
| Video outputs | 3× DisplayPort1× HDMI1x DVI-I, 1x DVI-D |
|---|
| Ethernet ports | GbE1: Intel I219 (Support Wake-on-LAN and PXE) · GbE2: Intel I210 (Support Wake-on-LAN and PXE) · 2× RJ45 |
|---|---|
| USB ports | 6× USB 3.2 Gen 2 (10 Gbps) · 3× USB 3.2 Gen 1 (5 Gbps, 1× Internal)2× USB 2.0 header (internal) |
| Serial interfaces | 2× RS-232/422/485 ; 6× RS-232/422/485 (internal) |
| Audio | 1× Mic-in, 1× Line-out |
| Digital I/O | 8 in / 8 out (Isolated) |
| CAN bus | 2× CAN 2.0 A/B 2-pin Internal header |
| Wireless | 4G/LTE5GWi-FiBluetooth(5.0)Wi-Fi 6 (802.11ax)(optional) |
|---|
| Expansion | 2x Full-size Mini PCIe1x M.2 (E Key, PCIe x1, USB 2.0, 2230)(optional)1x PCIe x16 (occupied by GPU)(optional) |
|---|
| Supply voltage | 12–48 V |
|---|
| Mounting | Wall Mount |
|---|---|
| Dimensions | 240 (W) x 261 (D) x 126.8 (H) mm |
| Weight | 6.2 kg |
| Chassis material | Extruded Aluminum with Heavy Duty Metal |
| Operating temperature | -25–70 °C |
|---|---|
| Storage temperature | -30–85 °C |
| Certifications | CEIEC 62368-1FCC(class A) |
|---|
| Operating systems | LinuxWindows |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| RCO-6000-CML-2C-2060S-P |
