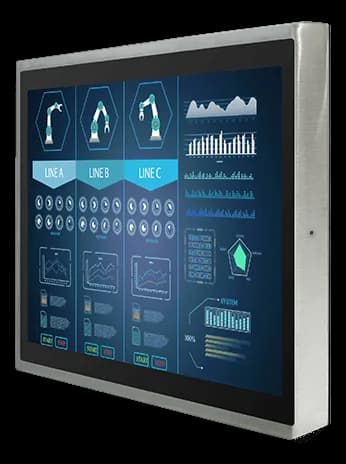

R15L100-SPC315" stainless steel PCAP touch monitor with IP65 rating
- Manufacturer
R15L100-SPC3 is a Winmate industrial monitor for operator stations in environments where the surface has to be cleaned frequently and touch remains the only visible control, with no keys or bezels in which processing residues could settle.
Fixing is on a VESA attachment or on a yoke bracket, with a weight of 6.3 kg, and power input is direct current at 12 V. Storage is allowed over the -20~60 °C range.
At a glance
- Display size: 15 ″
- Resolution: 1024x768 XGA
- Brightness: Up to 399 standard cd/m²
- Touchscreen: PCAP
- Contrast ratio: 2000:1
Technical specifications
| Display size | 15 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | Up to 399 standard cd/m² |
| Touchscreen | PCAP |
| Video inputs | VGA(default)DVI(1x waterproof connector for DVI input (O · optional)HDMI(1x waterproof connector for HDMI input ( · optional) |
| Aspect ratio | 4:3 |
| Contrast ratio | 2000:1 |
| Viewing angle | 88,88,88,88 |
| Display colors | 16.2M Colors |
| Active area | 304.1 × 228.1 mm |
| Optical bonding | Yes(optional) |
| USB ports | 1× M12 waterproof connector for touch screen control |
|---|
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Mounting | Yoke MountVESA Mount |
|---|---|
| Weight | 6.3 kg |
| Chassis material | acciaio inox |
| IP rating | Full IP65 |
|---|---|
| Cooling | Fanless |
| Storage temperature | -20–60 °C |
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
