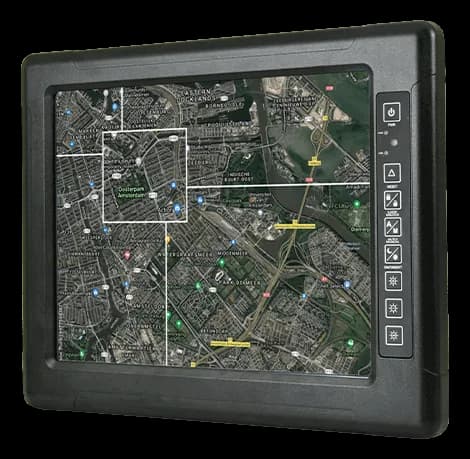

R15L100-MLA3HB15" high-brightness rugged monitor for stations exposed to direct light
- Manufacturer
R15L100-MLA3HB is a Winmate rugged display for loading docks, yards, vehicle cabs and warehouses with large glazed areas, contexts where ambient light makes a conventional monitor hard to read.
The DC power input accepts nominal voltages of 9, 12 or 36 V for direct connection to on-board networks. The display operates with relative humidity from 10 to 95% and tolerates storage from -30 to 70 °C.
At a glance
- Display size: 15 ″
- Resolution: 1024x768 XGA
- Brightness: 1000+ sunlight cd/m²
- Video inputs: VGA
- Contrast ratio: 2500:1
Technical specifications
| Display size | 15 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Aspect ratio | 4:3 |
| Brightness | 1000+ sunlight cd/m² |
| Touchscreen | Resistive(optional) |
| Video inputs | VGA |
| Contrast ratio | 2500:1 |
| Viewing angle | 88° / 88° / 88° / 88° (L/R/U/D) |
| Display colors | 16.7M colori |
| Active area | 304.1 × 228.1 mm |
| Surface treatment | Anti-reflective (AR)(default) |
| OSD controls | 8 key: Power, Menu, Auto, Volume Up/Swap, Volume Down/PIP, Brightness Up, Brightness Down, LED Adjustment |
| USB ports | 1× USB for Touch Screen(Defence Grade)(optional) |
|---|---|
| Serial interfaces | 1× RS232 for Touch Screen(Defence Grade)(optional) |
| AC/DC input | DC |
|---|---|
| Power input | 12 VDC (default) · 9~36 VDC wide range (opzionale) |
| Mounting | VESA Mount |
|---|---|
| Chassis material | alluminio, metallo |
| IP rating | IP65 |
|---|---|
| Operating temperature | -20–60 °C |
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | MIL-STD-810CEFCC |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
