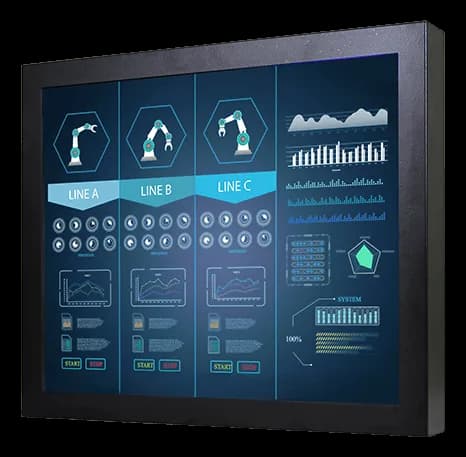

R15L100-CHA3WT15" 500 cd/m² monitor with a 2500:1 contrast ratio
- Manufacturer
R15L100-CHA3WT is a Winmate industrial monitor intended for operator stations, supervision panels and test benches, where it works as the display of an external PC or controller and does not integrate logic of its own.
Power input is direct current at 12 V and storage is allowed between -25~65 °C, a useful margin during transport and plant downtime. The panel reproduces 16.7 million colours.
At a glance
- Display size: 15 ″
- Resolution: 1024x768 XGA
- Brightness: 400-599 high cd/m²
- Contrast ratio: 2500:1
- USB ports: 1× USB for Touch Screen
Technical specifications
| Display size | 15 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | 400-599 high cd/m² |
| Touchscreen | Resistive(default) |
| Video inputs | VGA(default)HDMI(1 x HDMI (Optional) · optional)DVI(1 x DVI (Optional) · optional) |
| Aspect ratio | 4:3 |
| Contrast ratio | 2500:1 |
| Viewing angle | 88,88,88,88 |
| Display colors | 16.7M Colors |
| Active area | 304.1 × 228.1 mm |
| USB ports | 1× USB for Touch Screen |
|---|---|
| Audio | 2× Speaker(optional)Audio line in (3.5mm)(optional) |
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Mounting | VESA Mount |
|---|---|
| Chassis material | alluminio, metallo |
| Operating temperature | -20–60 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -25–65 °C |
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
