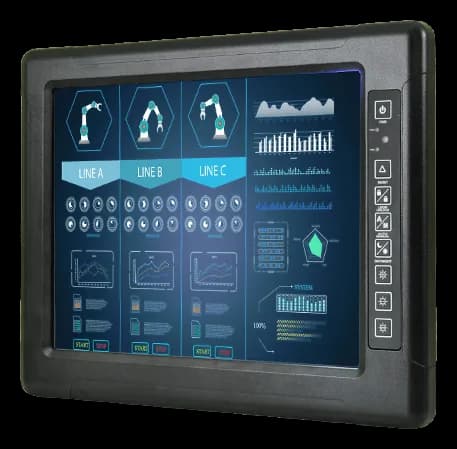

R15L100-67C3HB15" industrial panel-mount monitor with IP67 protection
- Manufacturer
R15L100-67C3HB is a Winmate industrial monitor for severe environments, where dust and water hit the unit during work or washdowns. The chassis is aluminum and the panel uses optical bonding; mounting can be on a VESA bracket or on a yoke mount, typical of installations on vehicles and suspended stations.
The allowed storage temperature runs from -30 to 70 °C and the total weight is 4.2 kg.
At a glance
- Display size: 15 ″
- Resolution: 1024x768 XGA
- Brightness: 1000+ sunlight cd/m²
- Optical bonding: Yes
- Contrast ratio: 2000:1
Technical specifications
| Display size | 15 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | 1000+ sunlight cd/m² |
| Touchscreen | Resistive(default) |
| Video inputs | HDMI(optional)VGA(default) |
| Display colors | 16.2M Colors |
| OSD controls | 1× Power Button, 1× Adjust up button, 1× Adjust down button, 1× ESC (Auto) button, 1× OK (Menu) button |
| Optical bonding | Yes |
| Viewing angle | 88,88,88,88 |
| Contrast ratio | 2000:1 |
| Active area | 304.1 × 228.1 mm |
| USB ports | 1× M12 type connector for Touchscreen via USB signal |
|---|---|
| Serial interfaces | 1× M12 type connector for Touchscreen via RS232 signal(optional) |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | Yoke MountVESA Mount |
|---|---|
| Weight | 4.2 kg |
| Chassis material | alluminio |
| IP rating | Full IP67 |
|---|---|
| Storage temperature | -30–70 °C |
| Cooling | Fanless |
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
