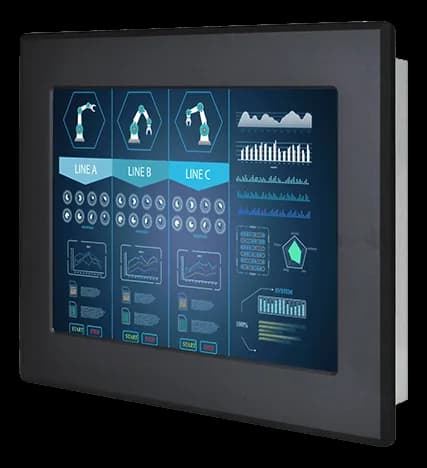

R15L100-IPA3WT15" monitor with IP65 front and 2500:1 contrast
- Manufacturer
R15L100-IPA3WT is a Winmate industrial monitor for control panels and department stations, where the front stays exposed to dust and water jets during cleaning operations.
Operation is specified from -20 to 60 °C with storage allowed between -25~65 °C. The direct current power input is at 12 V, with a 24 V option; the standard video input is VGA, while HDMI and DVI are available as an option.
At a glance
- Display size: 15 ″
- Resolution: 1024x768 XGA
- Brightness: 400-599 high cd/m²
- Contrast ratio: 2500:1
- USB ports: 1× USB for Touch Screen
Technical specifications
| Display size | 15 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | 400-599 high cd/m² |
| Touchscreen | Resistive(default) |
| Video inputs | VGA(default)HDMI(1 x HDMI (Optional) · optional)DVI(1 x DVI (Optional) · optional) |
| Aspect ratio | 4:3 |
| Contrast ratio | 2500:1 |
| Viewing angle | 88,88,88,88 |
| Display colors | 16.7M Colors |
| Active area | 304.1 × 228.1 mm |
| USB ports | 1× USB for Touch Screen |
|---|---|
| Audio | 2× Speaker(optional)Audio line in (3.5mm)(optional) |
| AC/DC input | DC |
|---|---|
| Power input | DC 12/24 V (nominali a scelta) |
| Mounting | Panel MountVESA Mount |
|---|
| IP rating | Front IP65 |
|---|---|
| Operating temperature | -20–60 °C |
| Storage temperature | -25–65 °C |
| Certifications | FCCCE |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
