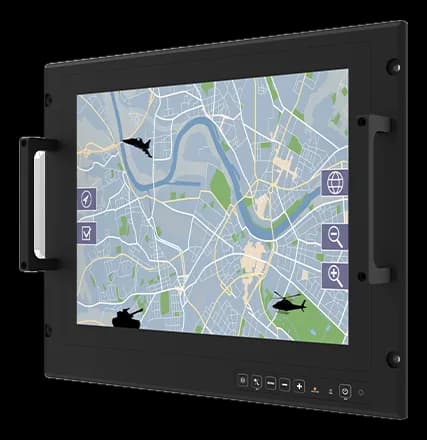

R15IT3S-MLA3FP15" rugged panel PC with Intel Core i5 and rack mounting
- Manufacturer
R15IT3S-MLA3FP is a Winmate rugged panel PC for operator stations in an industrial setting: display and computing unit inhabit a single body, with no external PC to house and no video cabling to lay.
The processor frequency runs from 2.4 to 4.4 GHz and the operating system comes in Linux, Windows 10 IoT or Windows 11 IoT versions. The operating temperature covers -20 to 60 °C, with relative humidity up to 95% and MIL-STD-810 compliance.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 11th gen (Tiger Lake)
- CPU frequency: 2.4–4.4 GHz
- TPM: TPM 2.0
- Memory: 4GB (Default) GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| CPU generation | 11th gen (Tiger Lake) |
| Processor | Intel Core i5-1145G7 2.6GHz (up to 4.4GHz)(optional) |
| CPU frequency | 2.4–4.4 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB (Default) GB |
|---|
| Storage | 128GB, up to 2TB |
|---|
| Display size | 15 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | 400-599 high cd/m² |
| Touchscreen | PCAP(default)PCAP(optional) |
| Contrast ratio | 2500:1 |
| Aspect ratio | 4:3 |
| Viewing angle | 88,88,88,88 |
| Active area | 304.1 × 228.1 mm |
| Video outputs | 1× HDMI(optional) |
| OSD controls | 8 Key OSD Control Pad: Power, Brightness DOWN, Brightness UP, Night, Day, Auto / Manual, Reset, Lock |
| Ethernet ports | 2× RJ-452× Intel® Ethernet Controller |
|---|---|
| USB ports | 2× USB 3.2 Gen 1 |
| Serial interfaces | 1× RS232(Default)/422/485 |
| AC/DC input | AC+DC |
|---|---|
| Power input | AC 100~240V, Universal, ±10% (Default); DC 9~36V, ±10% (Optional) |
| Mounting | Rack MountVESA Mount(optional) |
|---|---|
| Dimensions | 402 × 321 × 70 mm |
| Chassis material | alluminio, metallo |
| Operating temperature | -20–60 °C |
|---|---|
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | MIL-STD-810MIL-STD-461FCCCE |
|---|
| Operating systems | Windows 10 IoTWindows 11 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
