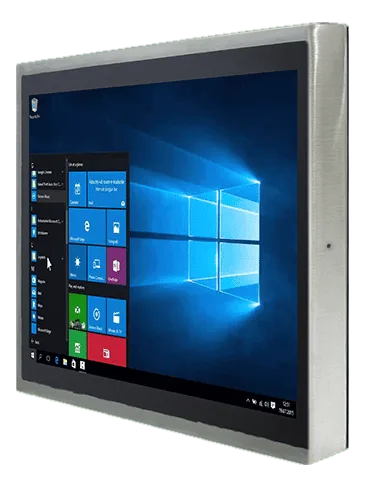

R15IT3S-SPC36915" fanless panel PC with a stainless steel chassis and Intel Core i5
- Manufacturer
R15IT3S-SPC369 is an industrial panel PC with a 15" display intended for use in production environments and at HMI stations, with VESA mounting and Linux or Windows 11 IoT operating systems.
The stainless steel chassis and fanless cooling reduce maintenance points in harsh contexts. The display integrates a contrast ratio of 2000:1, while the processing side is based on an Intel Core i5 platform with TPM 2.0.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
- CPU frequency: 2.4–4.2 GHz
- TPM: TPM 2.0
- Memory: 4GB(Default) (Default) GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| CPU frequency | 2.4–4.2 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB(Default) (Default) GB |
|---|
| Storage | 1× SATA III for 2.5" SSD/HDD up to 2TB(optional · 2.5-SATA)128GB SSD(Default) (Default) 256GB SSD (Optional) 512GB SSD (Optional) 1TB (Optional) 2TB (Optional) 4TB 1× SATA III for 2.5" SSD/HDD up to(2.5-SATA)1TB(optional · 2.5-SATA)256GB SSD(optional · 2.5-SATA)512GB SSD(optional · 2.5-SATA) |
|---|
| Display size | 15 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1024x768 XGA |
| Contrast ratio | 2000:1 |
| Viewing angle | 88,88,88,88 |
| Active area | 304.1 × 228.1 mm |
| OSD controls | Button 1 x Power Button 1 x Reset Button |
| Optical bonding | Yes(optional) |
| Ethernet ports | 2× Intel Ethernet Controller1× GbE (RJ45), waterproof |
|---|---|
| USB ports | 1x M12 Waterproof Connector for2× USB 2.0 |
| Serial interfaces | 1× RS-232 (M12), waterproof |
| Other I/O | 1 x Power Button · 1 x Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Mounting | VESA MountYoke Mount(optional) |
|---|---|
| Weight | 7.5 kg |
| Chassis material | acciaio inox |
| Cooling | Fanless |
|---|---|
| Storage temperature | -20–60 °C |
| Certifications | FCCCE |
|---|
| Operating systems | LinuxWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
