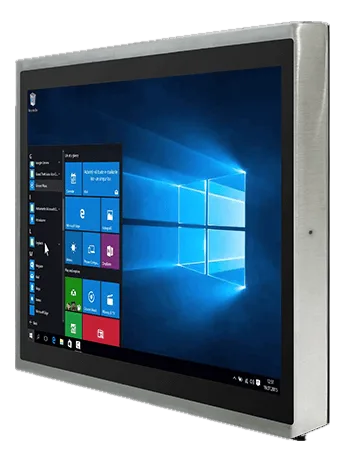

R15IT3S-SPC315" fanless stainless steel panel PC with IP65 rating and Intel Core i5
- Manufacturer
R15IT3S-SPC3 is a 15" industrial panel PC with a fanless architecture based on an Intel Core i5-1135G7 processor (2.4~4.2 GHz), suited to use in harsh environments thanks to IP65 protection and VESA mounting. It supports Windows 11 IoT and Linux, with a TPM 2.0 module.
The stainless steel chassis and the absence of fans define its use in contexts subject to dust and water jets. The display offers a contrast ratio of 2000 and a brightness of 300 cd/m², with dual Ethernet ports for network integration.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
- CPU frequency: 2.4–4.2 GHz
- TPM: TPM 2.0
- Memory: 4GB(Default) (Default) GB
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| CPU frequency | 2.4–4.2 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB(Default) (Default) GB |
|---|
| Storage | 1× SATA III for 2.5" SSD/HDD up to 2TB(optional · 2.5-SATA)128GB SSD(Default) (Default) 256GB SSD (Optional) 512GB SSD (Optional) 1TB (Optional) 2TB (Optional) 4TB 1× SATA III for 2.5" SSD/HDD up to(2.5-SATA)1TB(optional · 2.5-SATA)256GB SSD(optional · 2.5-SATA)512GB SSD(optional · 2.5-SATA) |
|---|
| Display size | 15 ″ |
|---|---|
| Touchscreen | PCAP |
| Brightness | Up to 399 standard cd/m² |
| Resolution | 1024x768 XGA |
| Contrast ratio | 2000:1 |
| Viewing angle | 88,88,88,88 |
| Active area | 304.1 × 228.1 mm |
| OSD controls | Button 1 x Power Button 1 x Reset Button |
| Optical bonding | Yes(optional) |
| Ethernet ports | 1× GbE (RJ45), waterproof2× Intel Ethernet Controller |
|---|---|
| USB ports | 2× USB 2.01x M12 Waterproof Connector for |
| Serial interfaces | 1× RS-232 (M12), waterproof |
| Other I/O | 1 x Power Button · 1 x Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | DC V |
| Mounting | VESA MountYoke Mount(optional) |
|---|---|
| Weight | 7.5 kg |
| Chassis material | acciaio inox |
| IP rating | IP65 |
|---|---|
| Cooling | Fanless |
| Storage temperature | -20–60 °C |
| Certifications | CEFCC |
|---|
| Operating systems | Windows 11 IoTLinux |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
