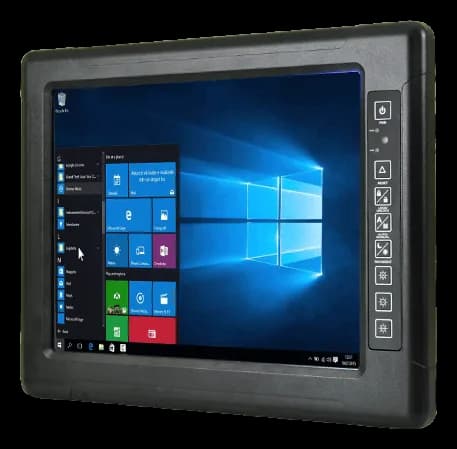

R15IT3S-67C3(HB)15" fanless IP67 panel PC with a 1000 cd/m² display
- Manufacturer
R15IT3S-67C3(HB) is an industrial panel PC with a 15" diagonal and an aluminum frame, intended for use in harsh environments where protection from dust and water jets and readability under direct light are required. VESA mounting and fanless operation allow integration in fixed stations and on machines.
IP67 protection and the display with 1000 cd/m² brightness, combined with optical bonding and a contrast ratio of 2000, set the model apart for outdoor use and in areas exposed to liquids. The 9~36 V DC power range eases its use with on-board supplies and inside cabinets.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU generation: 11th gen (Tiger Lake)
- Processor: Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
- CPU frequency: 2.4–4.2 GHz
- TPM: TPM 2.0
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| CPU generation | 11th gen (Tiger Lake) |
| Processor | Intel Core i5-1135G7 2.4GHz (up to 4.2GHz) |
| CPU frequency | 2.4–4.2 GHz |
| TPM | TPM 2.0 |
| Memory | 4GB(Default) GB |
|---|
| Storage | 4TB(optional · SSD/HDD)1TB(optional · SSD/HDD)2TB(optional · SSD/HDD)256GB SSD(optional · SSD/HDD)512GB SSD(optional · SSD/HDD)128GB SSD(Default)(SSD/HDD) |
|---|
| Display size | 15 ″ |
|---|---|
| Resolution | 1024x768 XGA |
| Brightness | 1000+ sunlight cd/m² |
| Touchscreen | Resistive(default) |
| Contrast ratio | 2000:1 |
| Aspect ratio | 4:3 |
| Viewing angle | 88,88,88,88 |
| Active area | 304.1 × 228.1 mm |
| Optical bonding | Yes |
| Ethernet ports | 1× GbE (RJ45), waterproof1× Intel Ethernet Controller |
|---|---|
| USB ports | 2× USB 2.01× connettore M12 stagno per 2× USB 2.0 |
| Serial interfaces | 1× RS-232 (M12), waterproof |
| Other I/O | 1× "Power" key to power on the device. · 1× "+" key to increase screen brightness. · 1× "-" key to decrease screen brightness. · 1× Day / Night Mode button · 1× Ambient Light sensor |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Mounting | VESA MountYoke Mount(optional) |
|---|---|
| Dimensions | 398 × 308 × 58 mm |
| Weight | 4.2 kg |
| Chassis material | alluminio |
| IP rating | Full IP67 |
|---|---|
| Operating temperature | -10–55 °C-40–55 °C(optional) |
| Cooling | Fanless |
| Storage temperature | -30–70 °C |
| Certifications | CEFCC |
|---|
| Operating systems | LinuxWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
