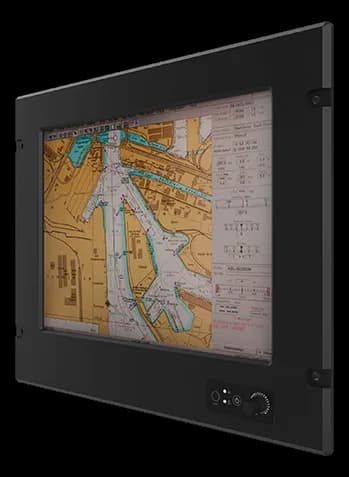

R15IT3S-MRM215" fanless panel PC with an IP66 front and a 500 cd/m² display
- Manufacturer
R15IT3S-MRM2 is an industrial panel PC with a 15" display intended for cabinet installation or VESA mounting in production and automation environments. The aluminum and metal chassis and fanless operation reduce maintenance points, while the IP66-rated front protects against dust and water jets.
The platform carries an Intel Core i5 or i7 CPU with a 2.4~4.7 GHz frequency and supports Windows 10 IoT and Windows 11 IoT. The wide-range 9~36 V DC power input allows integration in plants without a dedicated AC supply, with a 500 cd/m² display and a contrast ratio of 2000, readable in lit environments.
At a glance
- CPU class: Intel Core i3/i5/i7/i9
- CPU frequency: 2.4–4.7 GHz
- Memory: 4GB (Default) 8GB (Optional) 16GB (Optional) 32GB (Optional) GB
- Storage: 128GB (Default) 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional)
- Display size: 15 ″
Technical specifications
| CPU class | Intel Core i3/i5/i7/i9 |
|---|---|
| Processor | Intel Core i7-1165G7 2.8GHz (up to 4.7GHz)(optional) |
| CPU frequency | 2.4–4.7 GHz |
| Memory | 4GB (Default) 8GB (Optional) 16GB (Optional) 32GB (Optional) GB |
|---|
| Storage | 128GB (Default) 256GB (Optional) 512GB (Optional) 1TB (Optional) 2TB (Optional) 4TB (Optional)256GB(optional)4TB(optional)512GB(optional)1TB(optional)2TB(optional) |
|---|
| Display size | 15 ″ |
|---|---|
| Touchscreen | Resistive(default) |
| Brightness | 400-599 high cd/m² |
| Resolution | 1024x768 XGA |
| Contrast ratio | 2000:1 |
| Viewing angle | 88,88,88,88 |
| Active area | 304.1 × 228.1 mm |
| Video outputs | 1× HDMI (opzionale)(optional) |
| OSD controls | 1 x Power Button, 1 x Reset Button, 1 x The Dimming Knob |
| Ethernet ports | 2× 2.5GbE (RJ45)2× Intel Ethernet Controller |
|---|---|
| USB ports | 2× USB 3.0 |
| Serial interfaces | 4× RS-422/485, isolate (opzionale)(optional) |
| Audio | 2× speaker |
| Other I/O | 1 x Power Button · 1 x Reset Button |
| AC/DC input | DC |
|---|---|
| Power input | 9–36 V |
| Power consumption | 55 W |
| Mounting | VESA MountPanel Mount |
|---|---|
| Dimensions | 412 × 345 × 71.7 mm |
| Cutout dimensions | 360 × 302 mm |
| Weight | 6.2 kg |
| Chassis material | alluminio, metallo |
| IP rating | Front IP66 |
|---|---|
| Cooling | Fanless |
| Certifications | CEFCC |
|---|
| Operating systems | Windows 10 IoTWindows 11 IoT |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Documentation
Accessories
The codes that fit this series. An accessory can be compatible with several series: it appears under each of them. Sorted by code.
| Photo | Part number | Description |
|---|---|---|

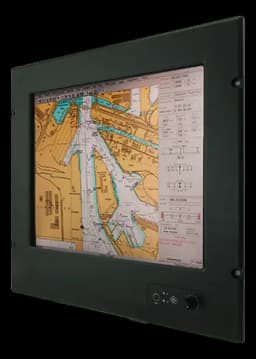

 | R15ID3S-MRM2 | 15" panel PC, 300cd/m², fanless |
