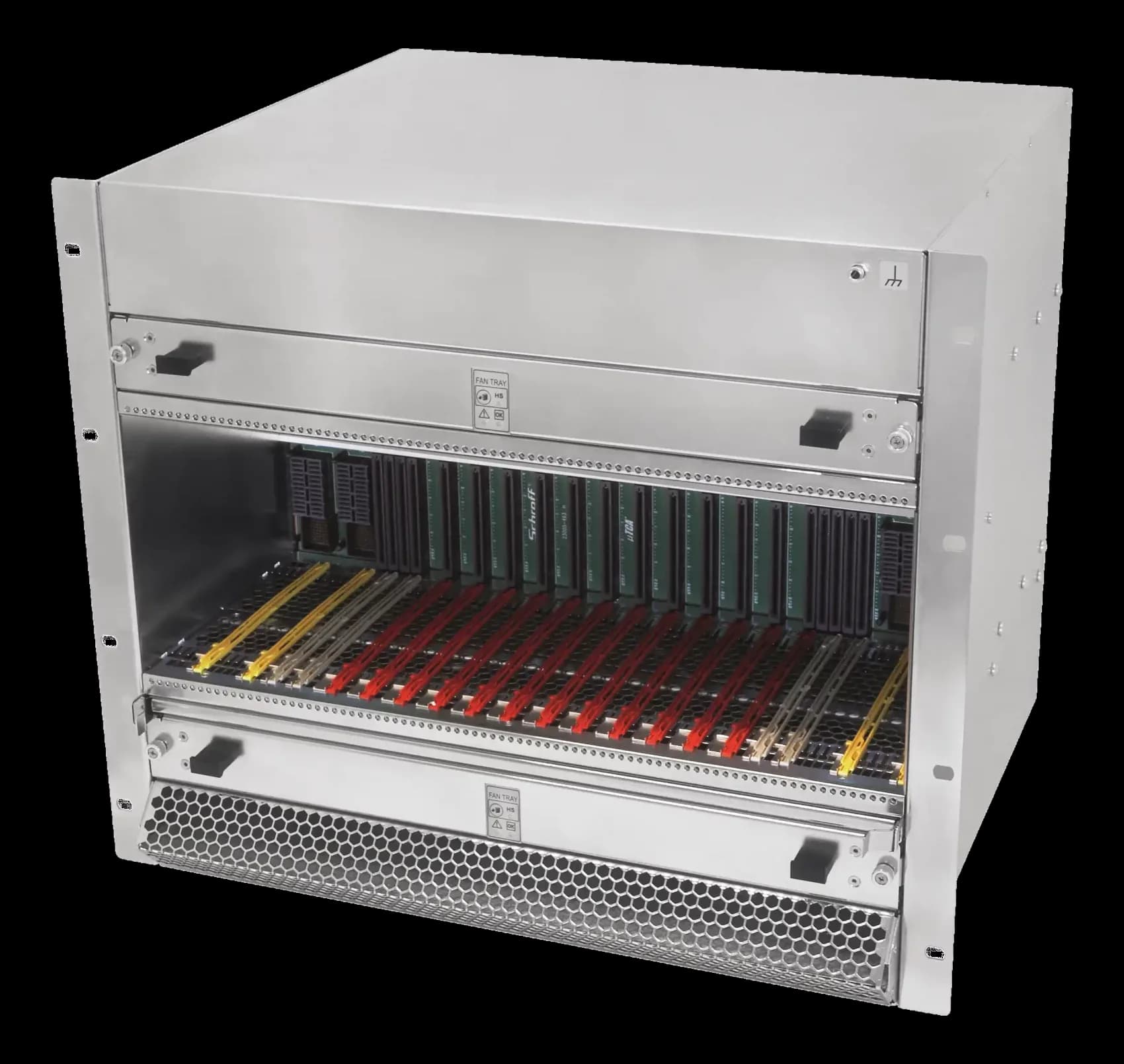

NATIVE-R9Rack mount MicroTCA.4 platform with redundant backplane
- Manufacturer
- Configurations
- 6 available configurations
NATIVE-R9 is the cabinet configuration of the MTCA.4 architecture: the redundant backplane provides two management modules, so that the system stays governable even if one of the two fails, and leaves the remaining slots to the double-height application boards.
It is the platform for plants in continuous service, where service continuity weighs more than footprint. Supervision goes through the IPMI interface and the profile declared towards the modules is AMC.0, as set out by the MTCA.4 standard.
At a glance
- Architecture standard: MTCA.4
- Cooling: Fan (active)
Technical specifications
| Ethernet ports | AMC Port 0: 1 GbE routed between MCH1 and each AMC |
|---|
| Architecture standard | MTCA.4AMC |
|---|---|
| AMC slot configuration | 12x AMC, double-width, mid-size (max. power: 80W/slot) |
| IPMI management | Intelligent Platform Management Interface |
| Rack units | 9 U |
|---|---|
| Weight | 20 kg |
| Cooling | Fan (active) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| NATIVE-R9-JSM |
| NATIVE-R9-LNLS |
| NATIVE-R9-NWR |
| NATIVE-R9-NWR-LLRFBP |
| NATIVE-R9-WR |
| NATIVE-R9-WR-LLRFBP |
