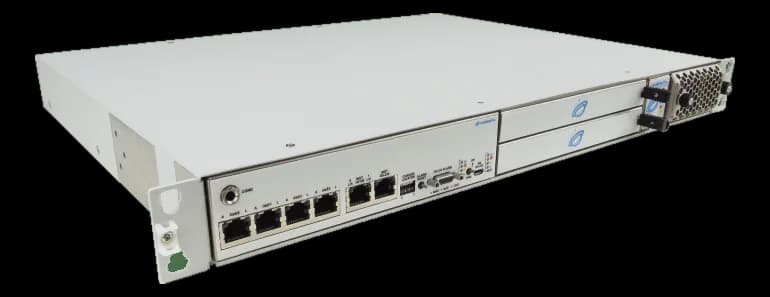

VT8551U MicroTCA system with integrated Intel Xeon W-11865MRE

Manufacturer

VT855 is not only an enclosure for AMC boards: it integrates the compute part into the chassis, with an Intel Xeon processor of the eleventh generation Tiger Lake-H family. The application can therefore run inside the system, alongside the acquisition modules, without an external server.

The DDR4 memory provides ECC support, a condition required when data integrity counts as much as its processing. The AMC positions stay available for the application boards and can alternatively house disk drives. The AMC.0, AMC.1, AMC.2 and AMC.4 profiles are declared, CE, FCC and UL certifications and a storage range from -40 to 90 °C.

At a glance

CPU generation: 11th gen (Tiger Lake)
Processor: Integrated Intel Xeon W-11865MRE (Tiger Lake-H) 11th-Generation (8 core with Turbo 4.7 GHz)
CPU cores: 8
CPU frequency: 4.7 GHz
ECC support: Yes

Request information Full specifications ↓

Technical specifications

CPU generation	11th gen (Tiger Lake)
Processor	Integrated Intel Xeon W-11865MRE (Tiger Lake-H) 11th-Generation (8 core with Turbo 4.7 GHz)
CPU cores	8
CPU frequency	4.7 GHz

ECC support	Yes
RAM type	DDR4
Memory	64GB of DDR4 with ECC GB

Ethernet ports	Two GbE SerDes per slot routed to the GbE switch or to the front

Architecture standard	AMCAMC.1AMC.2AMC.4
Bus interface	PCIe x1, x2, x4 or x8 lanes between the two slotsRouted point to point between the two slots or dual 2.5” disk100 MHz HCSL per AMC.1Dual x4 connection between the two slots
AMC slot configuration	0 = Single Module; 1 = Double Module
IPMI management	2.0
