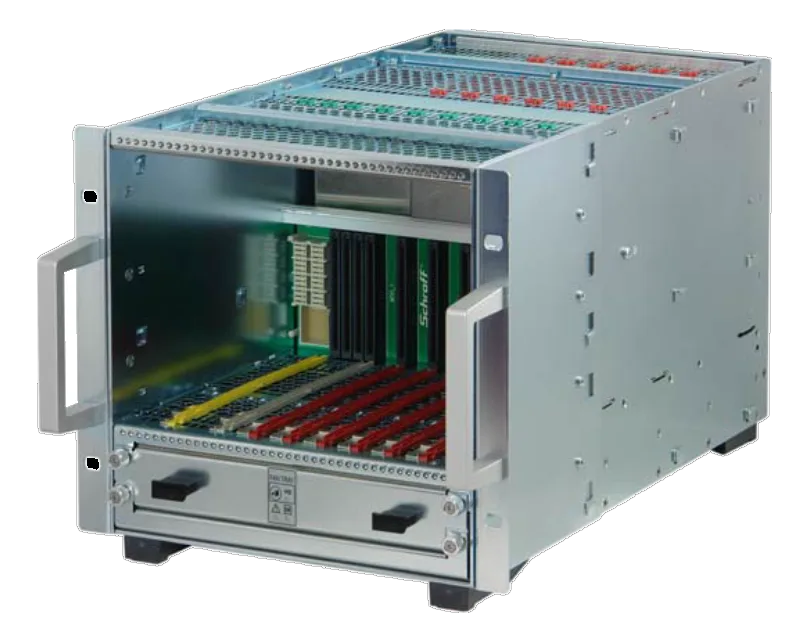

NATIVE-R5Table top MicroTCA.4 system for double-height modules
- Manufacturer
NATIVE-R5 is an MTCA.4 system in table top format: it needs no cabinet and provides a non-redundant backplane, with one slot dedicated to the management module and the remaining ones free for the application boards.
It is the typical configuration of laboratories and development stations, where what counts is being able to change the inserted modules often without working on a rack. Supervision goes through the IPMI interface and the profile declared towards the modules is AMC.0, consistent with the double-height MTCA.4 architecture.
At a glance
- Architecture standard: MTCA.4
- Cooling: Fan (active)
Technical specifications
| Ethernet ports | 1 GbE routed between MCH and each AMC |
|---|
| Architecture standard | MTCA.4AMC |
|---|---|
| AMC slot configuration | 6x AMC, double-width, mid-size (max. power: 80W/slot); 1x AMC, double-width, full-size (max. power: 80W) |
| IPMI management | Intelligent Platform Management Interface |
| Rack units | 5 U |
|---|
| Cooling | Fan (active) |
|---|
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
