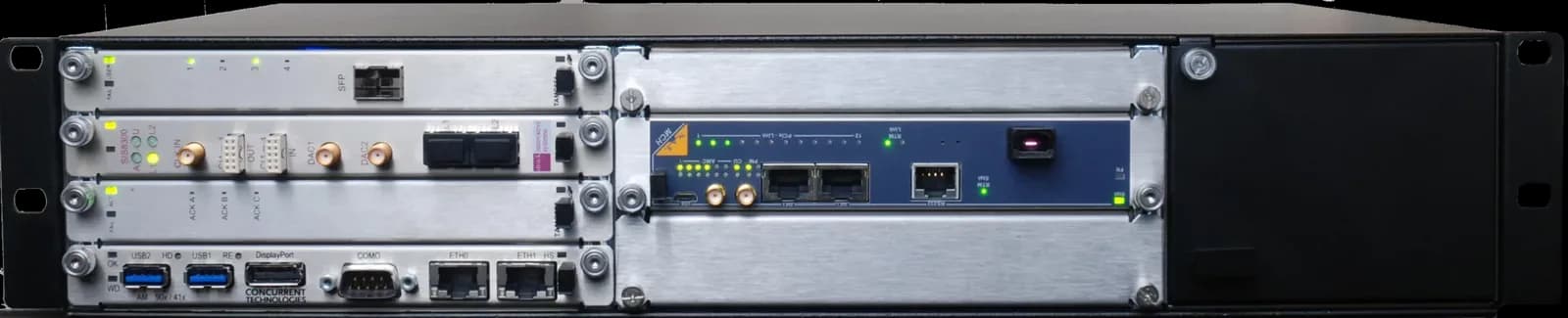

NATIVE-R2Low-height MicroTCA.4 chassis for 19 inch racks
- Manufacturer
- Configurations
- 4 available configurations
MTCA.4 is the variant of the standard meant for instrumentation: it provides double-height modules and the option of adding rear transition boards, where the analog connections towards the field find room.
NATIVE-R2 brings this architecture into a low-height rack format, suited to cabinets already occupied by other instrumentation. The operating temperature range runs from -20 to 70 °C and the system is supervised through the IPMI interface; the profiles declared towards the modules are AMC.0 and AMC.1.
At a glance
- Architecture standard: AMC
- Power consumption: 14.4 W
- Operating temperature: -20–70 °C
- Cooling: Fan (active)
Technical specifications
| Ethernet ports | Optional White Rabbit driven by optional White Rabbit Clock Module on the NAT-MCH-PHYS802x PCIe x4PCIe x8(alternative) |
|---|---|
| Connectors | N-pin connector |
| Architecture standard | AMCAMC.1MTCA.4 |
|---|---|
| IPMI management | Intelligent Platform Management Interface |
| Power consumption | 14.4 W |
|---|
| Rack units | 2 U |
|---|---|
| Dimensions | 440 × 378 mm |
| Storage temperature | 70–70 °C |
|---|---|
| Operating temperature | -20–70 °C |
| Cooling | Fan (active) |
Data extracted from the manufacturers' technical sheets: the official product spec sheet remains the reference for final confirmation.
Family configurations
The order codes of this family: the sheet applies to all of them, the detail of each configuration is in the datasheet.
| Configuration (PN) |
|---|
| NATIVE-R2-NWR-FL |
| NATIVE-R2-NWR-RL |
| NATIVE-R2-WR-FL |
| NATIVE-R2-WR-RL |
